Cooling system-coolant pump for BMW 3 Series G20 Sedan 330d (2022)

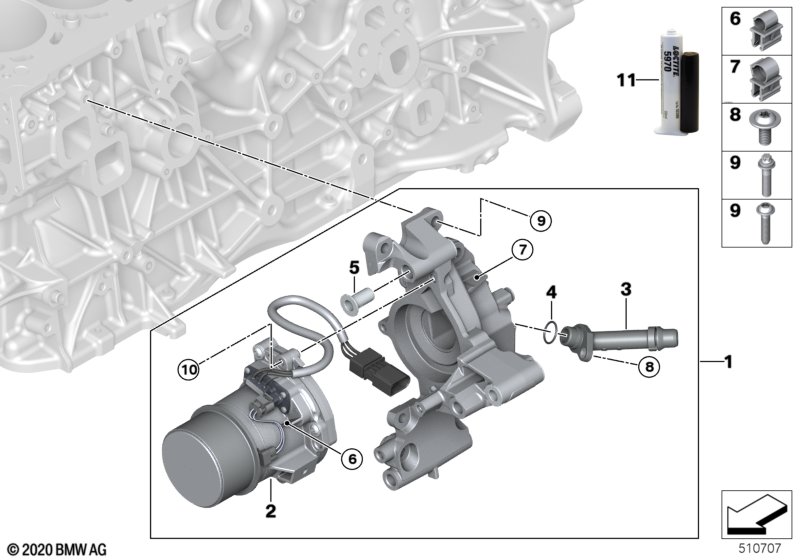

This Cooling system-coolant pump technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with support | 1 | 05/2024 | 11519887963 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 05/2024 | 07119907865 | Shop at ECS Tuning | ||||
| 01 | Coolant pump with support | 1 | 11518490650 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 02 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 03 | Connecting branch, coolant line | 1 | 11/2024 | 11519885452 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 11/2024 | 11519887963 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 11/2024 | 11518472117 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 11/2024 | 11519887963 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bush | 4 | 11289888617 | Shop at ECS Tuning | ||||||
| 06 | Tubing support | NW4,5 | 1 | 12527620156 | Shop at ECS Tuning | |||||
| 07 | Tubing support | NW4,5 | 1 | 12527620158 | Shop at ECS Tuning | |||||
| 08 | Screw | M6X16 | 2 | 07149885505 | Shop at ECS Tuning | |||||
| 09 | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 10 | Screw | M6X35 | 4 | 07149885504 | Shop at ECS Tuning | |||||
| 11 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
