Exhaust turbocharger heat shield for BMW 3 Series G21 Touring 330d (2022)

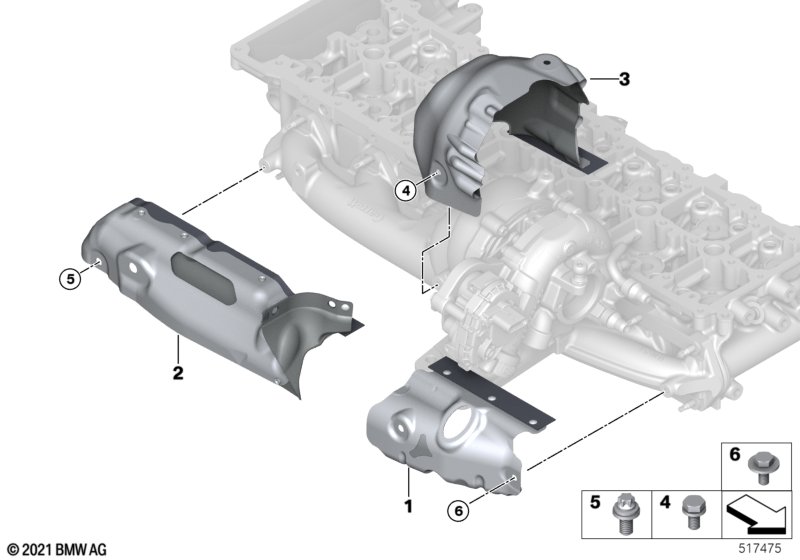

This Exhaust turbocharger heat shield technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C6 | Shop at ECS Tuning | |||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C7 | Shop at ECS Tuning | |||||
| 01 | Heat shield for exhaust manifold | 1 | 04/2024 | 11628598167 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598172 | ENDED | Shop at ECS Tuning | ||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598173 | ENDED | Shop at ECS Tuning | ||||
| 02 | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C6 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C3 | Shop at ECS Tuning | |||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C7 | Shop at ECS Tuning | |||||
| 02 | Heat shield for exhaust manifold | 1 | 04/2024 | 11628598172 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598167 | ENDED | Shop at ECS Tuning | ||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598173 | ENDED | Shop at ECS Tuning | ||||
| 03 | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C7 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C3 | NoS | Shop at ECS Tuning | ||||
| -- | Heat shield for exhaust manifold | 1 | 04/2024 | 11625B411C6 | NoS | Shop at ECS Tuning | ||||
| 03 | Heat shield for exhaust manifold | 1 | 04/2024 | 11628598173 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598167 | ENDED | Shop at ECS Tuning | ||||
| -- | Heat shield for exhaust manifold | X | 04/2024 | 11628598172 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Star-socket screw | M6X12 8.8 | 2 | 07119908672 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X14U2-ZNNIVSI | 2 | 07119905952 | $0.91 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330d Exhaust turbocharger heat shield?
- This technical diagram illustrates the Exhaust turbocharger heat shield within the Engine group for the 3 Series G21 Touring 330d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Heat shield for exhaust manifold (Part #11625B411C3).
- Which models use the hardware listed in this Exhaust turbocharger heat shield?
- The hardware and components featured in the Exhaust turbocharger heat shield are specific to the 3 Series G21 Touring 330d produced during 2022. These technical specifications ensure that parts like the Heat shield for exhaust manifold (11625B411C3) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust turbocharger heat shield assembly?
- Each item in the Exhaust turbocharger heat shield corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330d, you can identify the Heat shield for exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11625B411C3 for the Engine section.
