Turbocharger for BMW 3 Series G20 Sedan 330d (2020)

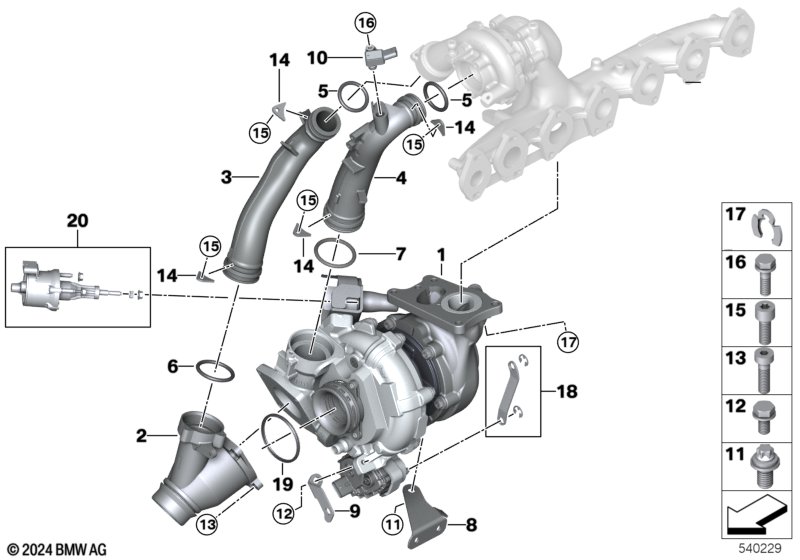

This Turbocharger technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | RP exhaust turbocharger | 1 | 09/2022 | 11658596264 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Oil return line exhaust turbocharger | 1 | 09/2022 | 11427824704 | Shop at ECS Tuning | |||||
| 02 | Compressor bypass flap | 1 | 11658596273 | Shop at ECS Tuning | ||||||
| 03 | Connection pipe | 1 | 11658596272 | Shop at ECS Tuning | ||||||
| 04 | Connection pipe | 1 | 11658596270 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 37,47X5,33 | 2 | 07119907867 | Shop at ECS Tuning | |||||
| 06 | O-ring | 46X5,33 | 1 | 07119907495 | Shop at ECS Tuning | |||||
| 07 | O-ring | 50,16X5,33 | 1 | 11509908048 | Shop at ECS Tuning | |||||
| 08 | Support bracket for turbocharger | 1 | 11658596257 | Shop at ECS Tuning | ||||||
| 09 | Support bracket for turbocharger | 1 | 11659885833 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X20-U1-8.8-ZN | 2 | 11719886428 | Shop at ECS Tuning | |||||
| 10 | Pressure sensor | 1 | 13629885466 | Shop at ECS Tuning | ||||||
| 11 | Star-socket screw | M8X18 | 3 | 07119909449 | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | M8X20-U1-8.8-ZN | 2 | 11719886428 | Shop at ECS Tuning | |||||
| 13 | ISA screw | M6X20-8.8-ZNNIV | 4 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Mounting panel | 6 | 11657823036 | Shop at ECS Tuning | ||||||
| 15 | ASA-Bolt | BM6X16-ZNNIV SI | 6 | 07119907573 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Securing clip | 1 | 11657926394 | Shop at ECS Tuning | ||||||
| 18 | Repair kit for coupling rod | 1 | 11657926391 | Shop at ECS Tuning | ||||||
| 19 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 20 | Service kit for E-controller | 1 | 11655B477A9 | Shop at ECS Tuning | ||||||
