Engine Block Mounting Parts for BMW 4 Series G82 M4 Coupé M4 (2024)

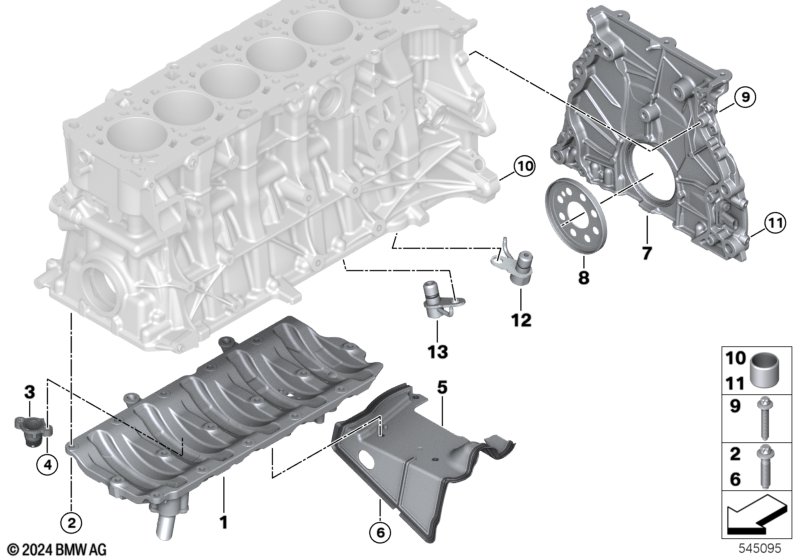

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil deflector | 1 | 11138090914 | Shop at ECS Tuning | ||||||
| 02 | ASA-Bolt | M8X35 | 16 | 11418612615 | Shop at ECS Tuning | |||||
| 03 | Suction pipe right | 1 | 11138469817 | Shop at ECS Tuning | ||||||
| 04 | Screw | M6X16-8.8 ZNNIV | 2 | 07119906443 | Shop at ECS Tuning | |||||
| 05 | Oil pan cover | 1 | 11138095325 | Shop at ECS Tuning | ||||||
| 06 | Countersunk screw | M6X20-8.8-ZNNIV | 4 | 07119907517 | Shop at ECS Tuning | |||||
| 07 | Timing case cover | 1 | 11148687455 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 08 | Reluctor | 1 | 11148605104 | Shop at ECS Tuning | ||||||
| 09 | ASA-Bolt | M6X31 | 11 | 11147797493 | Shop at ECS Tuning | |||||
| 10 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Oil Spraying Nozzle | 6 | 11428073816 | Shop at ECS Tuning | ||||||
| 13 | Oil Spraying Nozzle | 6 | 11428073651 | Shop at ECS Tuning | ||||||
