Cylinder Head/Mounting parts for BMW 1 Series F70 118d (2025)

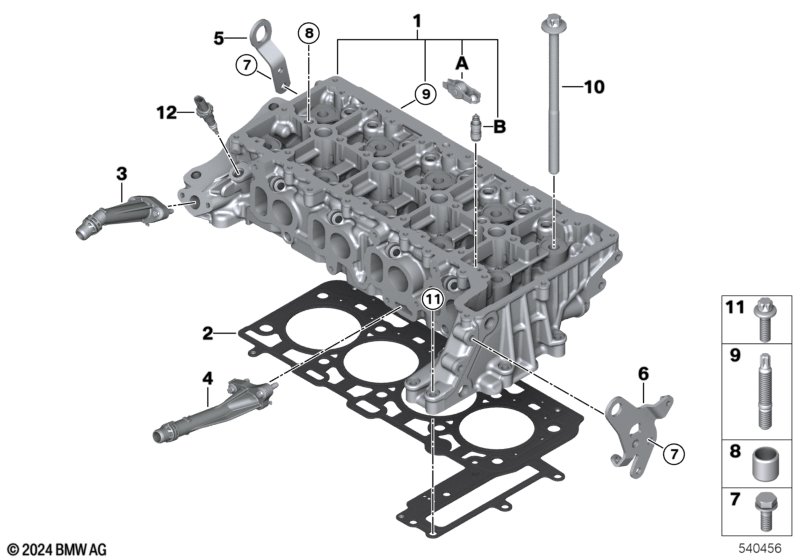

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11128471254 | Shop at ECS Tuning | ||||||
| 01 | Cylinder head with valve gear | 1 | 11121030374 | Shop at ECS Tuning | ||||||
| 02 | Cylinder head gasket | 1-LOCH | 1 | 11128471265 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 2-LOCH | 1 | 11128471266 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 3-LOCH | 1 | 11128471267 | Shop at ECS Tuning | |||||
| 03 | Connecting branch, coolant line | 1 | 11128472167 | Shop at ECS Tuning | ||||||
| 04 | Connecting branch, coolant line | 1 | 11128472169 | Shop at ECS Tuning | ||||||
| 05 | Loop | 1 | 11129887742 | Shop at ECS Tuning | ||||||
| 06 | Loop | 1 | 11128472142 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X22 | 4 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | ASA-stud bolt | M7X47-10.9-PHR | 8 | 11128597830 | Shop at ECS Tuning | |||||
| 10 | Set Bolt Cylinder Head | M12X1,5X200 | 1 | 11128513128 | Shop at ECS Tuning | |||||
| 11 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 12 | Temperature sensor, coolant | 1 | 13627797957 | Shop at ECS Tuning |
