Cylinder head cover for BMW 2 Series U06 Active Tourer 218d (2025)

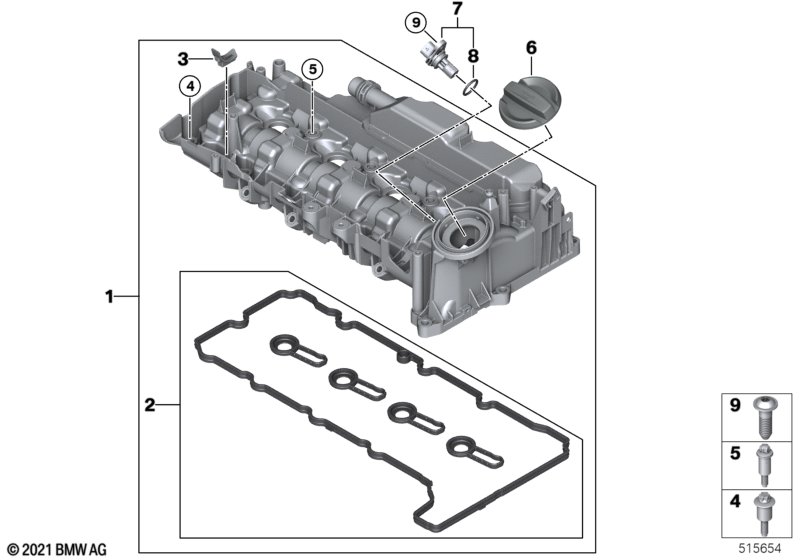

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11128490022 | Shop at ECS Tuning | ||||||
| 02 | Gasket set, cylinder head cover | 1 | 11127926314 | Shop at ECS Tuning | ||||||
| 03 | Decoupling element | 2 | 11128574790 | Shop at ECS Tuning | ||||||
| 04 | ASA-Bolt | M6X29 | 15 | 11128576309 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | M6X29 | 15 | 11121033473 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M6X35 | 4 | 11128490942 | Shop at ECS Tuning | |||||
| 06 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 07 | Camshaft position sensor | 1 | 13627633958 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 18,2X2,5 | 1 | 13628658854 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 218d Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 2 Series U06 Active Tourer 218d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11128490022).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 2 Series U06 Active Tourer 218d produced during 2025. These technical specifications ensure that parts like the Cylinder head cover (11128490022) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 218d, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11128490022 for the Engine section.
