Crankshaft drive mass compensator for BMW 2 Series U06 Active Tourer 220d (2025)

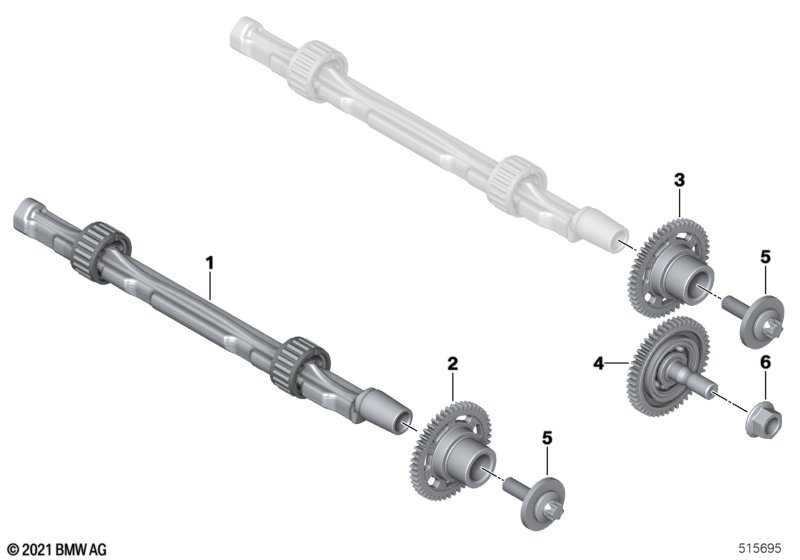

This Crankshaft drive mass compensator technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Compensating shaft | 2 | 11278471859 | Shop at ECS Tuning | ||||||
| 02 | Gear wheel | 1 | 11278471860 | Shop at ECS Tuning | ||||||
| 03 | Gear wheel | 1 | 11278471861 | Shop at ECS Tuning | ||||||
| 04 | Idler | 1 | 11275A29F49 | Shop at ECS Tuning | ||||||
| 05 | ASA bolt with washer | 2 | 11278508003 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M12X1,5 | 1 | 11277797952 | Shop at ECS Tuning |
