Flywheel for BMW 2 Series U06 Active Tourer 218d (2025)

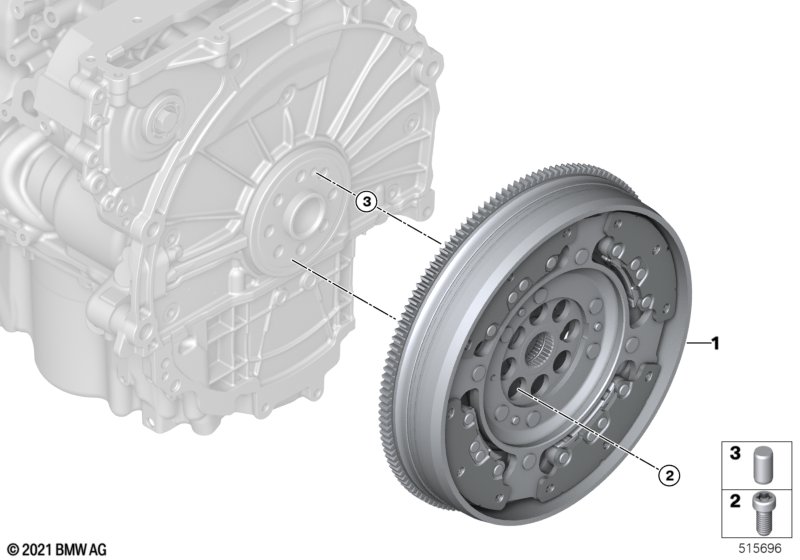

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dual-mass flywheel | 1 | 21205A87394 | Shop at ECS Tuning | ||||||
| 02 | ISA screw | M12X1.5X26 | 8 | 11228507622 | Shop at ECS Tuning | |||||
| 03 | Pin | 8X14 | 1 | 11217797978 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 218d Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 2 Series U06 Active Tourer 218d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Dual-mass flywheel (Part #21205A87394).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 2 Series U06 Active Tourer 218d produced during 2025. These technical specifications ensure that parts like the Dual-mass flywheel (21205A87394) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 218d, you can identify the Dual-mass flywheel by locating its position on the schematic, which then links to the official BMW part number 21205A87394 for the Engine section.
