Cooling system - coolant pump/thermostat for BMW 2 Series U06 Active Tourer 220d (2023)

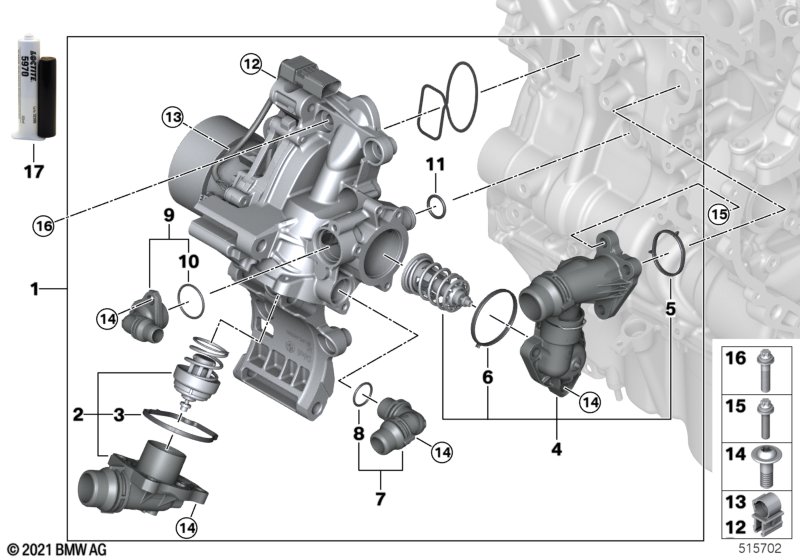

This Cooling system - coolant pump/thermostat technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with thermost. and support | 1 | 03/2024 | 11518471945 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 03/2024 | 07119907865 | Shop at ECS Tuning | ||||
| 01 | Coolant pump with thermostat/support | 1 | 11518490651 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 02 | Primary thermostat housing | 1 | 11518490616 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11518490617 | Shop at ECS Tuning | ||||||
| 04 | Secondary thermostat housing | 1 | 11518490620 | Shop at ECS Tuning | ||||||
| 05 | Profile-gasket | 1 | 11518490621 | Shop at ECS Tuning | ||||||
| 06 | Profile-gasket | 1 | 11518490622 | Shop at ECS Tuning | ||||||
| 07 | Connecting branch, coolant line | 1 | 11518490618 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 19,4X2 | 1 | 11518490623 | Shop at ECS Tuning | |||||
| 09 | Connecting branch, coolant line | 1 | 11518490619 | Shop at ECS Tuning | ||||||
| 10 | O-ring | 26,7X2 | 1 | 11518490624 | Shop at ECS Tuning | |||||
| 11 | O-ring | 1 | 11518472115 | Shop at ECS Tuning | ||||||
| 12 | Tubing support | NW4,5 | 1 | 12527620156 | Shop at ECS Tuning | |||||
| 13 | Tubing support | NW4,5 | 1 | 12527620158 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | M6X20 | 9 | 11518482252 | Shop at ECS Tuning | |||||
| 15 | Star-socket screw | BM6X25-U1-8.8 | 3 | 07119907490 | Shop at ECS Tuning | |||||
| 16 | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 17 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
