Cylinder Head Attached Parts for BMW 6 Series E64 M6 (2010)

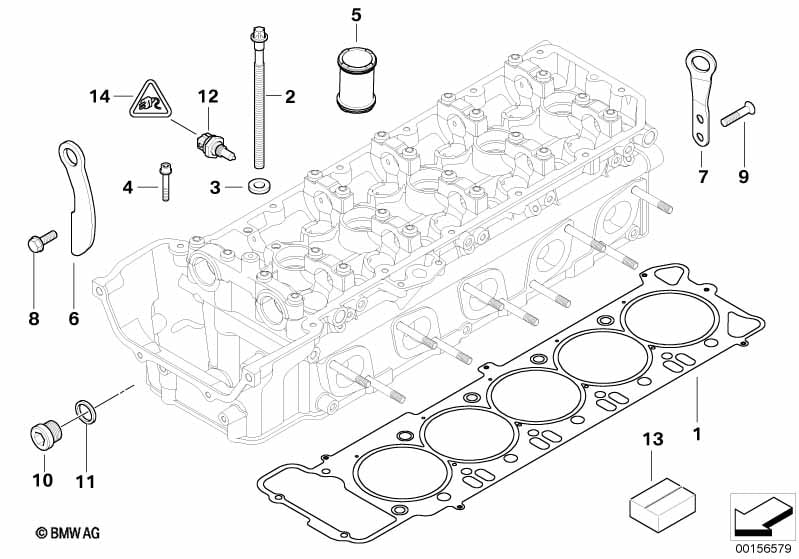

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head Gasket Asbestos-Free | 0,595MM | 2 | 11127837460 | $151.90 | Shop at ECS Tuning | ||||
| 02 | Set Bolt Cylinder Head | M10X115 | 2 | 05/2008 | 11127838831 | $43.02 | Shop at ECS Tuning | |||
| 03 | Washer | 24 | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Isa screw with washer | M6X35-ZNNIV SI | 4 | 05/2008 | 07129905538 | $0.62 | Shop at ECS Tuning | |||
| 05 | Spark plug pipe | 10 | 11127835170 | $8.68 | Shop at ECS Tuning | |||||
| Only applies to cylinder 1-5 | ||||||||||
| 06 | Shackle | 1 | 11127833620 | $7.50 | Shop at ECS Tuning | |||||
| Only applies to cylinder 6-10 | ||||||||||
| 07 | Shackle | 1 | 11127832685 | $6.77 | Shop at ECS Tuning | |||||
| Only applies to cylinder 1-5 | ||||||||||
| 08 | ISA screw | M8X22-ZNNIV SI | 2 | 07129905769 | $0.47 | Shop at ECS Tuning | ||||
| Only applies to cylinder 6-10 | ||||||||||
| 09 | Countersunk head screw | M8X20 | 2 | 11127835441 | $1.40 | Shop at ECS Tuning | ||||
| 10 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 12/2007 | 33117525064 | $3.91 | Shop at ECS Tuning | |||
| Only applies to cylinder 1-5 | ||||||||||
| 12 | Temperature sensor coolant / oil | 1 | 13621433076 | $16.27 | Shop at ECS Tuning | |||||
| 13 | Gasket Set Cylinder Head Asbestos Free | 1 | 11120392976 | $473.93 | Shop at ECS Tuning | |||||
| Gasket set without cyl.head gasket | ||||||||||
| 14 | Socket housing | 2 POL. | 2 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
