Valve Timing Gear - Cam Shaft for BMW 6 Series E64 M6 (2010)

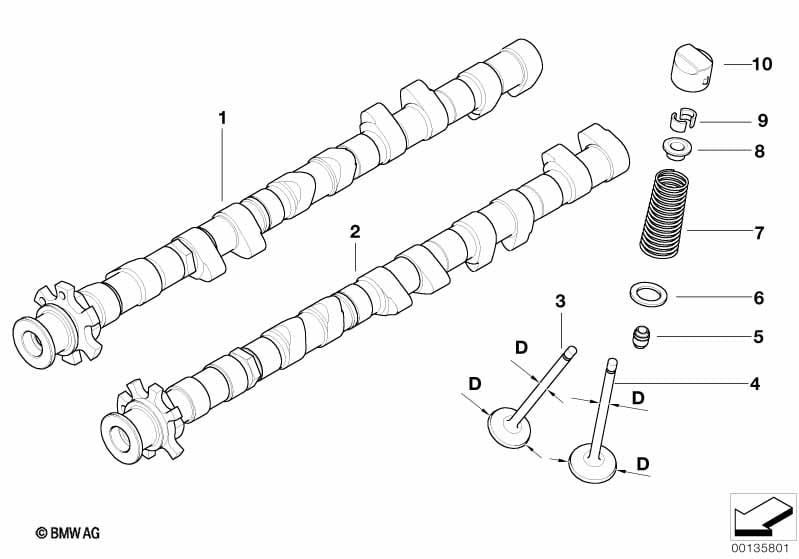

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | ZYL.1-5 | 1 | 11317835879 | $744.25 | Shop at ECS Tuning | ||||
| 01 | Inlet camshaft | ZYL.6-10 | 1 | 11317835880 | $744.25 | Shop at ECS Tuning | ||||
| 02 | Camshaft exhaust | ZYL.1-5 | 1 | 11317836125 | $744.25 | +core | Shop at ECS Tuning | |||
| 02 | Camshaft exhaust | ZYL.6-10 | 1 | 11317836126 | $744.25 | +core | Shop at ECS Tuning | |||
| only applies to Engine number starting with 2xxxxxxx |
||||||||||
| 03 | Intake valve | 35,7/4,97MM | 20 | 08/2008 | 11347838293 | $32.42 | Shop at ECS Tuning | |||
| 04 | Exhaust valve | 30,5/4,96MM | 20 | 08/2008 | 11347838294 | $55.08 | Shop at ECS Tuning | |||
| 05 | Repair kit valve seal ring | 2 | 11340032548 | $93.58 | Shop at ECS Tuning | |||||
| 06 | Lower spring plate | 40 | 11347837518 | $3.77 | Shop at ECS Tuning | |||||
| 07 | Valve spring | 40 | 11347837681 | $7.67 | Shop at ECS Tuning | |||||
| only applies to Engine number starting with 2xxxxxxx |
||||||||||
| 08 | Upper spring plate | 40 | 08/2008 | 11347838295 | $3.77 | Shop at ECS Tuning | ||||
| 09 | Valve collet | D=5 | 80 | 08/2008 | 11347838296 | $1.08 | Shop at ECS Tuning | |||
| 10 | Hydraulic valve lifter | 40 | 11327839082 | $32.50 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
