Waterpump - Thermostat for BMW 3 Series E91 LCI 330xd (2008)

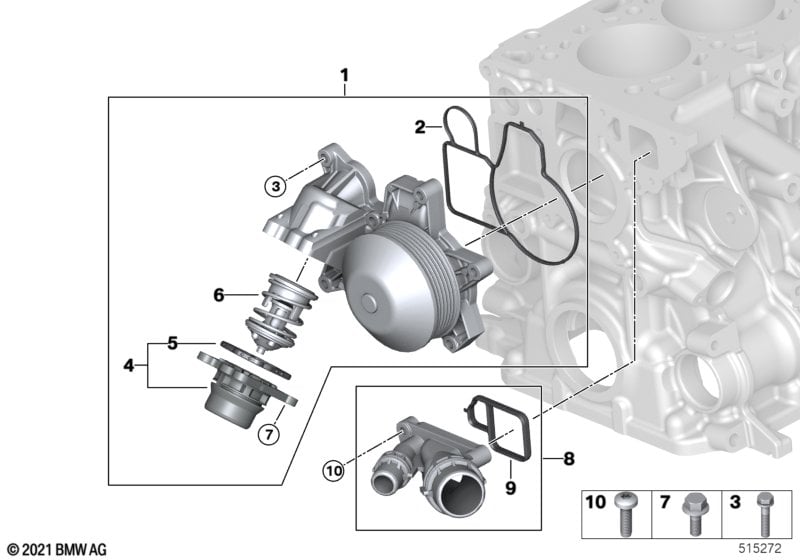

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, mechanical | 1 | 11514738427 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 02 | Profile-gasket | 1 | 11517805190 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M6X30-ZNNIV SI | 7 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Thermostat housing | 1 | 11517823193 | Shop at ECS Tuning | ||||||
| 05 | Profile-gasket | 1 | 11517806975 | Shop at ECS Tuning | ||||||
| 06 | Thermostat | 88CEL | 1 | 11517805192 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Connector | 1 | 11117800048 | Shop at ECS Tuning | ||||||
| 09 | Profile-gasket | 1 | 11117800050 | Shop at ECS Tuning | ||||||
| 10 | Torx bolt | M6X25-ZNNIV SI | 3 | 12/2013 | 07129905569 | $0.45 | Shop at ECS Tuning | |||
