Crankshaft drive mass compensator for BMW 4 Series G23 Convertible LCI 430i (2025)

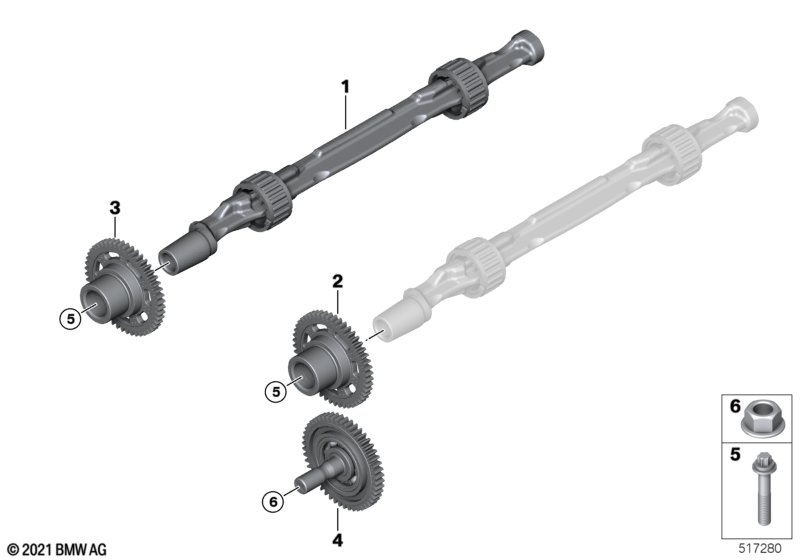

This Crankshaft drive mass compensator technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Compensating shaft | 2 | 11278487233 | Shop at ECS Tuning | ||||||
| 02 | Gear wheel | 1 | 11278471861 | Shop at ECS Tuning | ||||||
| 03 | Gear wheel | 1 | 11278471860 | Shop at ECS Tuning | ||||||
| 04 | Idler | 1 | 11275A29F49 | Shop at ECS Tuning | ||||||
| 05 | ASA bolt with washer | 2 | 11278508003 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M12X1,5 | 1 | 11277797952 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 430i Crankshaft drive mass compensator?
- This technical diagram illustrates the Crankshaft drive mass compensator within the Engine group for the 4 Series G23 Convertible LCI 430i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Compensating shaft (Part #11278487233).
- Which models use the hardware listed in this Crankshaft drive mass compensator?
- The hardware and components featured in the Crankshaft drive mass compensator are specific to the 4 Series G23 Convertible LCI 430i produced during 2025. These technical specifications ensure that parts like the Compensating shaft (11278487233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft drive mass compensator assembly?
- Each item in the Crankshaft drive mass compensator corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 430i, you can identify the Compensating shaft by locating its position on the schematic, which then links to the official BMW part number 11278487233 for the Engine section.
