Repair kit, exposed timing chain, top for BMW 1 Series F40 116d (2024)

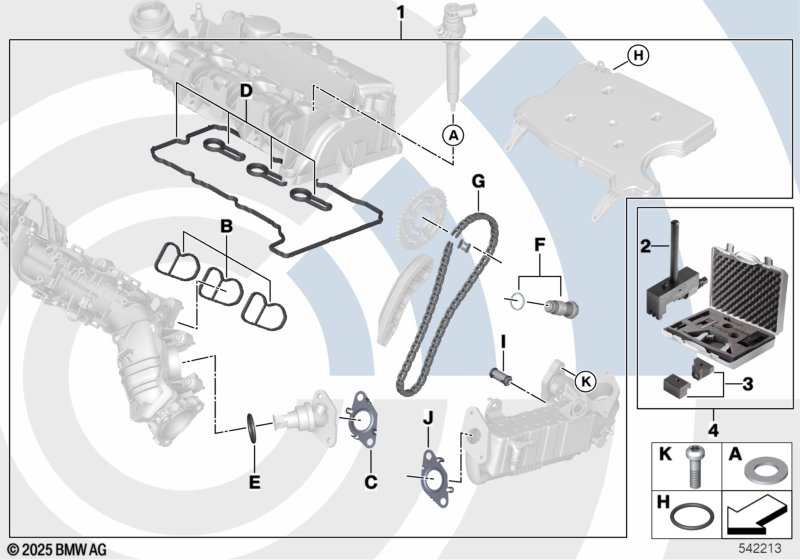

This Repair kit, exposed timing chain, top technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Significantly reduces the work time! Improves the repair quality. |
||||||||||
| 01 | Repair kit, exposed timing chain, top | VALUE PARTS | 1 | 11315A5CAE8 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. Special tools required! See positions 2, 3, 4! Engine oil change is required! |
||||||||||
| 02 | Basic body | 1 | 83302354962 | Shop at ECS Tuning | ||||||
| 02 | Basic body | 1 | 83302354983 | Shop at ECS Tuning | ||||||
| 03 | Female die | 1 | 83302354976 | Shop at ECS Tuning | ||||||
| 03 | Nietwerkzeug | 1 | 83302354981 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spindle | 1 | 83302354984 | Shop at ECS Tuning | ||||||
| 04 | Riveting tool set | 1 | 83302354985 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
