Engine Block Mounting Parts for BMW 7 Series G70 740d (2023)

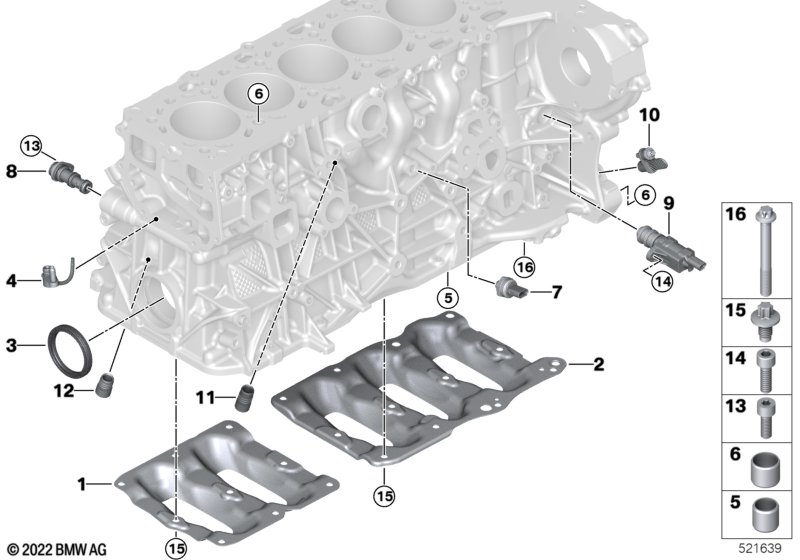

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reinforcement plate | ZYLINDER 1-2 | 1 | 11118599662 | Shop at ECS Tuning | |||||
| 02 | Reinforcement plate | ZYLINDER 4-6 | 1 | 11118599661 | Shop at ECS Tuning | |||||
| 03 | Shaft seal | 55X68X8 | 1 | 11117802665 | Shop at ECS Tuning | |||||
| 04 | Oil Spraying Nozzle | 6 | 11428471926 | Shop at ECS Tuning | ||||||
| 05 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=14,5MM | 4 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Oil pressure sensor | 1 | 12618482216 | Shop at ECS Tuning | ||||||
| 08 | Shift valve for piston cooling | 1 | 11428577190 | Shop at ECS Tuning | ||||||
| 09 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 10 | Cover lid | 1 | 10/2023 | 11668471789 | Shop at ECS Tuning | |||||
| 11 | non-return valve | 1 | 11128591869 | Shop at ECS Tuning | ||||||
| 12 | Check valve | 1 | 10/2022 | 11157101818 | Shop at ECS Tuning | |||||
| 13 | ISA screw | M6X16-8.8-ZNS3 | 1 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 14 | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 15 | ASA-Bolt | M8X14 10.9 | 17 | 11118572125 | Shop at ECS Tuning | |||||
| 16 | ASA-Bolt | M10X85 | 14 | 11118571560 | Shop at ECS Tuning |
