Belt Drive for BMW 7 Series G70 740d

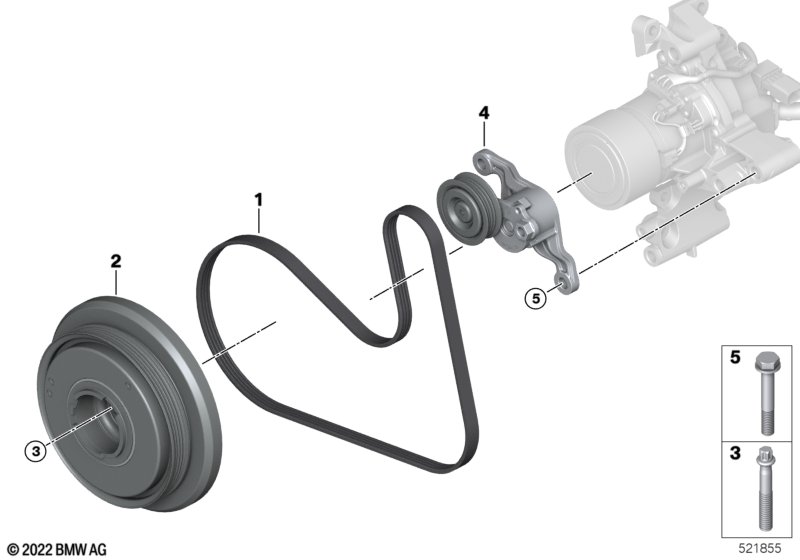

This Belt Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed V-belt | 4PKX1124 | 1 | 11288479242 | Shop at ECS Tuning | |||||
| 02 | Vibration damper | 1 | 11237828331 | Shop at ECS Tuning | ||||||
| 03 | ASA-Bolt | M10X65 | 4 | 11238585220 | Shop at ECS Tuning | |||||
| 04 | Belt tensioner | 1 | 11288479241 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M10X65-10.9 | 2 | 07119905562 | $1.91 | Shop at ECS Tuning |
