Flywheel for BMW 7 Series G70 740dX

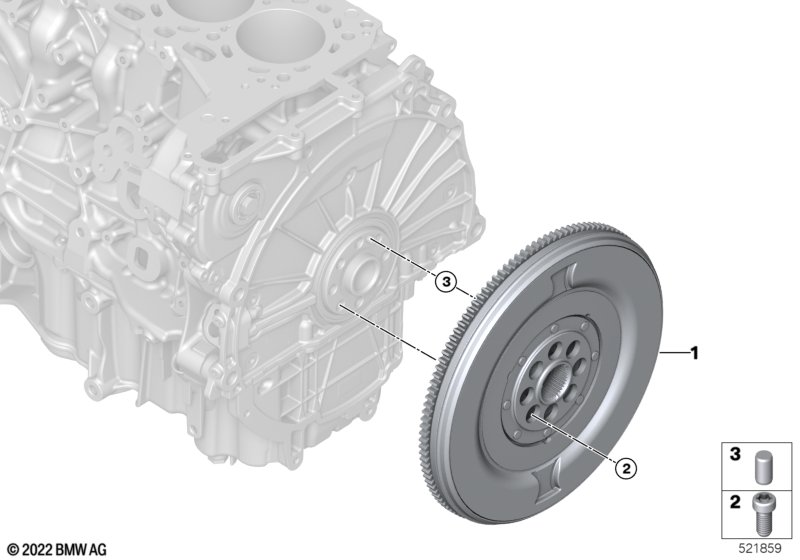

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740dX. It includes part names, part numbers and all associated mounting hardware.

Flywheel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Twin Mass Flywheel 1 24005A47767 Shop at ECS Tuning
02 ISA screw M12X1.5X26 8 11228507622 Shop at ECS Tuning
03 Pin 8X14 1 11217797978 Shop at ECS Tuning
