Lubrication system/Oil pump with drive for BMW 5 Series G61 Touring 540dX

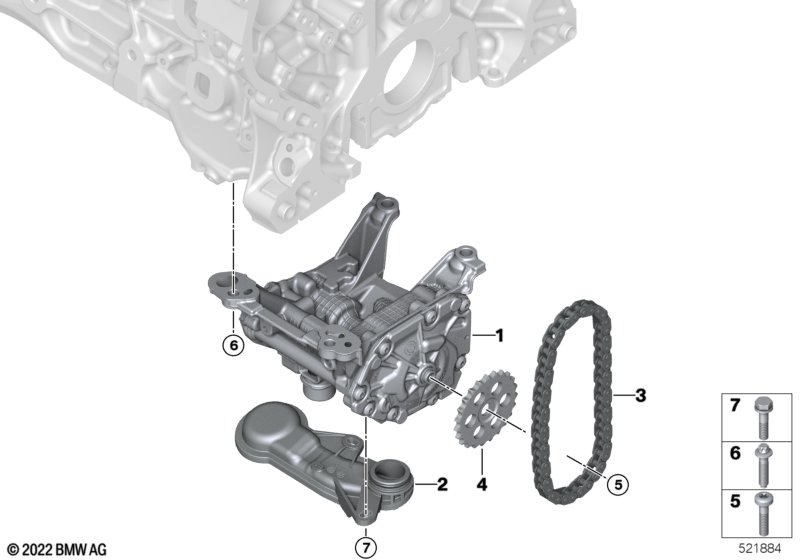

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 540dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11418479102 | Shop at ECS Tuning | ||||||
| 02 | Intake manifold oil pump | 1 | 11418596130 | Shop at ECS Tuning | ||||||
| 03 | Chain | 1 | 02/2025 | 11417797896 | Shop at ECS Tuning | |||||
| 03 | Chain | 1 | 11318506656 | Shop at ECS Tuning | ||||||
| 04 | Oil pump sprocket | Z=23 | 1 | 11417812449 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M8X35-PHR | 1 | 11417823426 | +core | Shop at ECS Tuning | ||||
| 06 | ASA-Bolt | M8X35 | 4 | 11418612615 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning |
