Cooling system-coolant pump for BMW 7 Series G70 740d

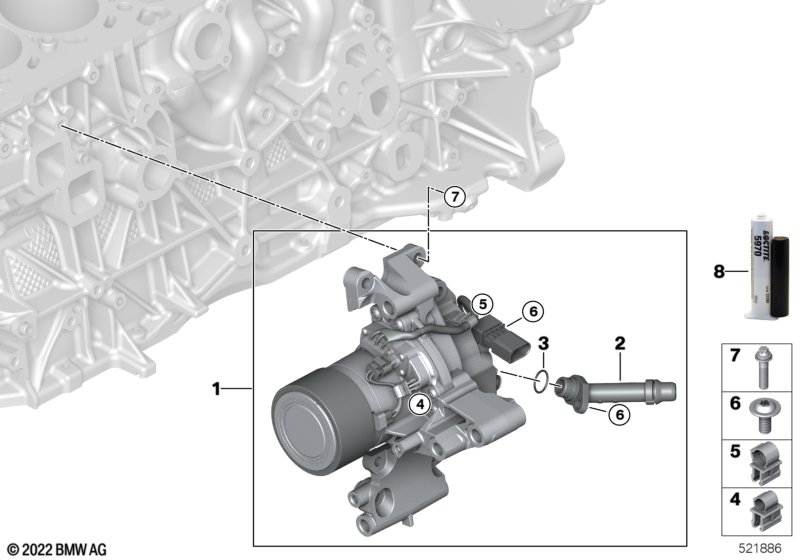

This Cooling system-coolant pump technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with support | 1 | 03/2024 | 11519886720 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 03/2024 | 07119907865 | Shop at ECS Tuning | ||||
| 01 | Coolant pump with support | 1 | 11518490649 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 02 | Not currently available as single part | 1 | 03/2025 | 84210300309 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 03/2025 | 11518490649 | Shop at ECS Tuning | |||||
| 02 | Connecting branch, coolant line | 1 | 03/2025 | 11519885452 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 03/2025 | 11519886720 | Shop at ECS Tuning | |||||
| 03 | Not currently available as single part | 1 | 03/2025 | 84210300309 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 03/2025 | 11518490649 | Shop at ECS Tuning | |||||
| 03 | O-ring | 1 | 03/2025 | 11518472117 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Coolant pump with support | X | 03/2025 | 11519886720 | Shop at ECS Tuning | |||||
| 04 | Tubing support | NW4,5 | 1 | 12527620156 | Shop at ECS Tuning | |||||
| 05 | Tubing support | NW4,5 | 1 | 12527620158 | Shop at ECS Tuning | |||||
| 06 | Screw | M6X16 | 2 | 07149885505 | Shop at ECS Tuning | |||||
| 07 | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 08 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
