Cooling system-thermostat housing for BMW 7 Series G70 740d (2023)

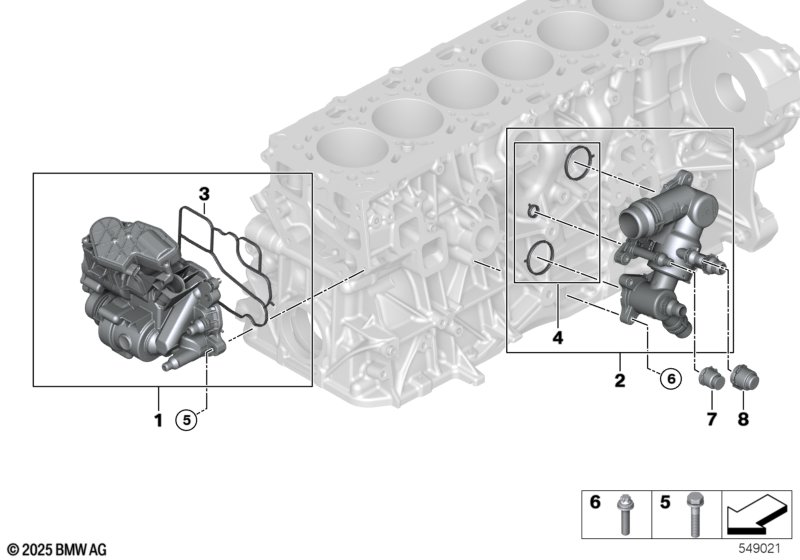

This Cooling system-thermostat housing technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primary thermostat | 1 | 11538596107 | Shop at ECS Tuning | ||||||
| 02 | Secondary thermostat | 1 | 11538596115 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11537925890 | Shop at ECS Tuning | ||||||
| 04 | Seal, thermostat housing | 1 | 03/2025 | 11537925893 | Shop at ECS Tuning | |||||
| 04 | Seal, thermostat housing | 1 | 11538888209 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X30-ZNNIV SI | 7 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Star-socket screw | BM6X25-U1-8.8 | 7 | 07119907490 | Shop at ECS Tuning | |||||
| 07 | Cap | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| 08 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning |
