pollutant reduction cooling for BMW 7 Series G70 740d (2023)

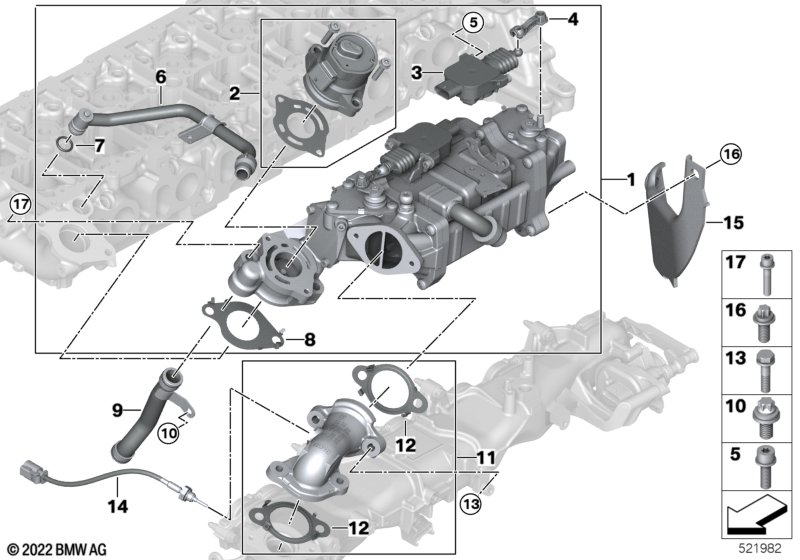

This pollutant reduction cooling technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust gas recirculation module | 1 | 11719886766 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 2 | 11719886852 | Shop at ECS Tuning | ||||||
| 02 | Exhaust-gas recirc.valve, high pressure | 1 | 11717822257 | Shop at ECS Tuning | ||||||
| 03 | Linear actuator | 2 | 11719889446 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Valve pushrod | 2 | 11719887735 | Shop at ECS Tuning | ||||||
| 04 | Valve pushrod | 2 | 11719887735 | Shop at ECS Tuning | ||||||
| 05 | Isa screw with washer | M5X16-U1-8.8 | 4 | 07129905535 | Shop at ECS Tuning | |||||
| 06 | Coolant pipe | 1 | 11717822250 | Shop at ECS Tuning | ||||||
| 07 | O-ring | 13,8X2,4 | 1 | 11718476981 | Shop at ECS Tuning | |||||
| 08 | Seal | 1 | 11717822248 | Shop at ECS Tuning | ||||||
| 09 | Coolant pipe, supply line | 1 | 11718598310 | Shop at ECS Tuning | ||||||
| 10 | ASA bolt with washer | M6X12 U1 8.8 | 1 | 07119908459 | Shop at ECS Tuning | |||||
| 11 | Exhaust-gas recirc.pipe, high pressure | 1 | 11719886767 | Shop at ECS Tuning | ||||||
| 12 | Gasket | 2 | 11719886852 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | M6X23-10.9 ZNS3 | 4 | 07147824682 | Shop at ECS Tuning | |||||
| 14 | EGR temperature sensor | L=216MM | 1 | 13628576316 | Shop at ECS Tuning | |||||
| 15 | Support exhaust gas recirculation module | 1 | 11718598315 | Shop at ECS Tuning | ||||||
| 16 | ASA-Bolt | M8X20-U1-8.8 | 3 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 17 | ISA screw | M8X40-U1 | 3 | 11717101518 | Shop at ECS Tuning | |||||
