Oil pan/oil filter/oil measurement unit for BMW XM G09 XM (2025)

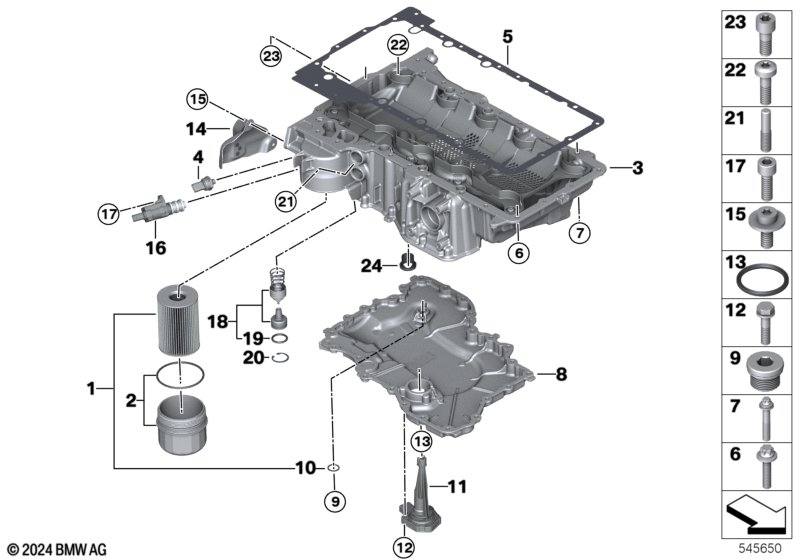

This Oil pan/oil filter/oil measurement unit technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set oil-filter element | 1 | 11425A33C43 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Oil drain plug | 1 | 07145A38759 | Shop at ECS Tuning | ||||||
| 02 | Oil filter cap with drain screw | 1 | 11425A34A34 | Shop at ECS Tuning | ||||||
| 03 | Oil pan upper part | 1 | 11139845700 | Shop at ECS Tuning | ||||||
| 04 | Oil pressure sensor | M10 | 1 | 12618647488 | Shop at ECS Tuning | |||||
| 05 | Gasket, oil pan | 1 | 11137852273 | Shop at ECS Tuning | ||||||
| 06 | Star-socket screw | BM6 X 25 | 17 | 07119908428 | Shop at ECS Tuning | |||||
| 07 | Torx screw, self-locking | M8X45-U1 | 6 | 07129909348 | Shop at ECS Tuning | |||||
| Attention! Oil pan can only be used once. Threaded connection, see repair instructions. |
||||||||||
| 08 | Oil pan with seal | 1 | 11139845701 | Shop at ECS Tuning | ||||||
| Attention! May only be used once. |
||||||||||
| 09 | Oil drain plug | 1 | 07145A38759 | Shop at ECS Tuning | ||||||
| 10 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Oil levelling sensor | 132,8MM | 1 | 12618638755 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Gasket | 1 | 12617604790 | Shop at ECS Tuning | ||||||
| 14 | Heat shield for oil pressure sensor | 1 | 12615A9D3F9 | NoS | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 16 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 17 | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 18 | Thermostat for oil circuit | 1 | 11137843144 | Shop at ECS Tuning | ||||||
| 19 | O-ring | 23,4X3,53 | 1 | 11317690476 | $2.46 | Shop at ECS Tuning | ||||
| 20 | Lock Ring | 30X1,2 | 1 | 07119934645 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 22 | Fillister head screw | ISA | 10 | 07149281969 | Shop at ECS Tuning | |||||
| 23 | Internal Torx screw with washer | M6X25-U1-8.8 | 2 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 24 | Gasket ring | 1 | 11138746460 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
