Turbocharger for BMW XM G09 XM (2025)

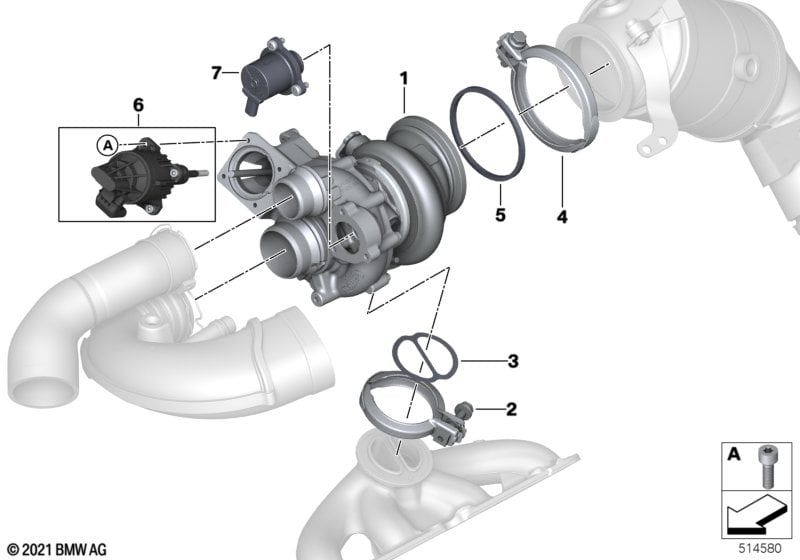

This Turbocharger technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Turbo charger | ZYL. 1-4 | 1 | 11655A2A205 | Shop at ECS Tuning | |||||
| Observe service solution SEL-SEL-P-11- 20000977551711. |
||||||||||
| 01 | Turbo charger | ZYL. 5-8 | 1 | 11655A2A206 | Shop at ECS Tuning | |||||
| 02 | Screw clamp | 80MM | 2 | 11658088736 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | 2 | 11657845076 | Shop at ECS Tuning | ||||||
| 04 | Screw clamp | 108,4MM | 2 | 11658064568 | Shop at ECS Tuning | |||||
| 05 | Gasket exh.turbocharger/cat.converter | 2 | 18307553601 | $18.21 | Shop at ECS Tuning | |||||
| 06 | Set Wastegate valve actuator | 2 | 11655A44513 | Shop at ECS Tuning | ||||||
| 07 | Blow-off valve | 2 | 11/2025 | 11658691854 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Turbocharger?
- This technical diagram illustrates the Turbocharger within the Engine group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Turbo charger (Part #11655A2A205).
- Which models use the hardware listed in this Turbocharger?
- The hardware and components featured in the Turbocharger are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Turbo charger (11655A2A205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Turbocharger assembly?
- Each item in the Turbocharger corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Turbo charger by locating its position on the schematic, which then links to the official BMW part number 11655A2A205 for the Engine section.
