Short block for BMW MINI Countryman F60 One (2019)

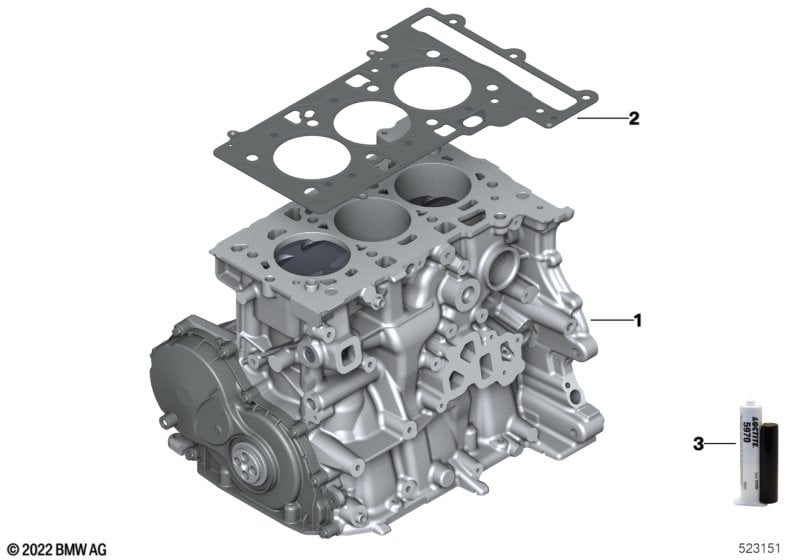

This Short block technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note Repair Manual | |||||||||
| Short block consists of: Crankcase Crankshaft with bearing shells Connecting rod and piston Counterbalance shafts Timing chain cover Oil deflector and oil spray nozzles |
||||||||||
| 01 | Short block | 1 | 11111025108 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| -- | Dowel | D=14,5MM | 1 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 0,70MM | 1 | 11128630683 | Shop at ECS Tuning | |||||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,00MM (+0,3) | 1 | 11128630684 | Shop at ECS Tuning | |||||
| 03 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
