Engine Block Mounting Parts for BMW 7 Series G70 M760eX (2025)

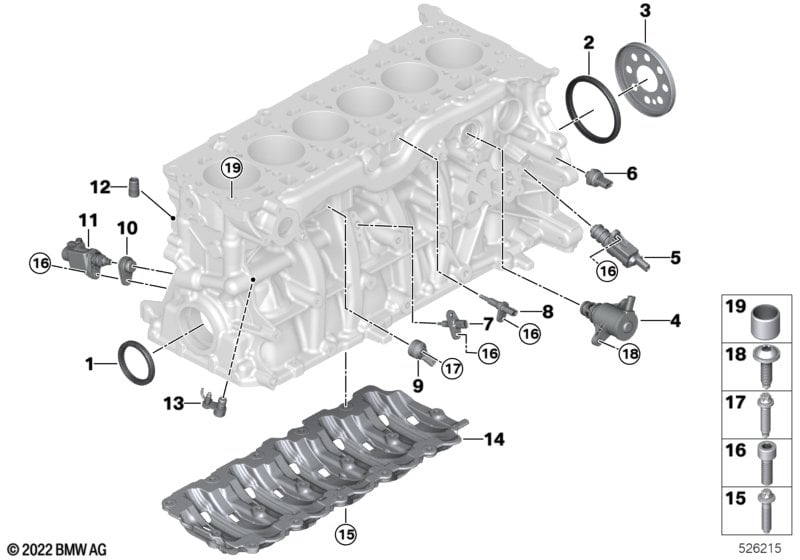

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 90X104X9MM | 1 | 11148664904 | Shop at ECS Tuning | |||||
| 03 | Reluctor | 1 | 11148605104 | Shop at ECS Tuning | ||||||
| To AI-07 of KGH-SNR 9468996, the shutoff valve with SNR 5A58876 is also required. From AI-08 of KGH-SNR 9468996, the sealing plug 8518468 is preassembled. |
||||||||||
| 04 | Read comments and instruct. carefully! | 1 | 01/2023 | 01104444444 | ENDED | Shop at ECS Tuning | ||||
| 05 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 06 | Oil pressure sensor | 1 | 12618482216 | Shop at ECS Tuning | ||||||
| 07 | Oil temperature sensor | 1 | 12619452254 | Shop at ECS Tuning | ||||||
| 08 | Component temperature sensor | 1 | 13628661436 | Shop at ECS Tuning | ||||||
| 09 | Ping Sensor | 2 | 13629845632 | Shop at ECS Tuning | ||||||
| 10 | Lock | 1 | 11111021466 | Shop at ECS Tuning | ||||||
| 12 | non-return valve | 1 | 11128591869 | Shop at ECS Tuning | ||||||
| 13 | Oil Spraying Nozzle | 6 | 11427634186 | Shop at ECS Tuning | ||||||
| 14 | Oil deflector | 1 | 11138487141 | Shop at ECS Tuning | ||||||
| 15 | ASA-Bolt | M8X35 | 16 | 11418612615 | Shop at ECS Tuning | |||||
| 16 | Fillister-head screw | M6X18-10.9-ZNS3 | 6 | 07119906651 | Shop at ECS Tuning | |||||
| 17 | Star-socket screw | BM8X30-8.8 ZNS3 | 2 | 13629907870 | Shop at ECS Tuning | |||||
| To AI-07 of KGH-SNR 9468996, the shutoff valve with SNR 5A58876 is also required. From AI-08 of KGH-SNR 9468996, the sealing plug 8518468 is preassembled. |
||||||||||
| 18 | Read comments and instruct. carefully! | 1 | 01/2023 | 01104444444 | ENDED, NoS | Shop at ECS Tuning | ||||
| 19 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Engine Block Mounting Parts?
- This technical diagram illustrates the Engine Block Mounting Parts within the Engine group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Shaft seal (Part #11118664905).
- Which models use the hardware listed in this Engine Block Mounting Parts?
- The hardware and components featured in the Engine Block Mounting Parts are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the Shaft seal (11118664905) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Block Mounting Parts assembly?
- Each item in the Engine Block Mounting Parts corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Shaft seal by locating its position on the schematic, which then links to the official BMW part number 11118664905 for the Engine section.
