Cylinder Head/Mounting parts for BMW 7 Series G70 735i

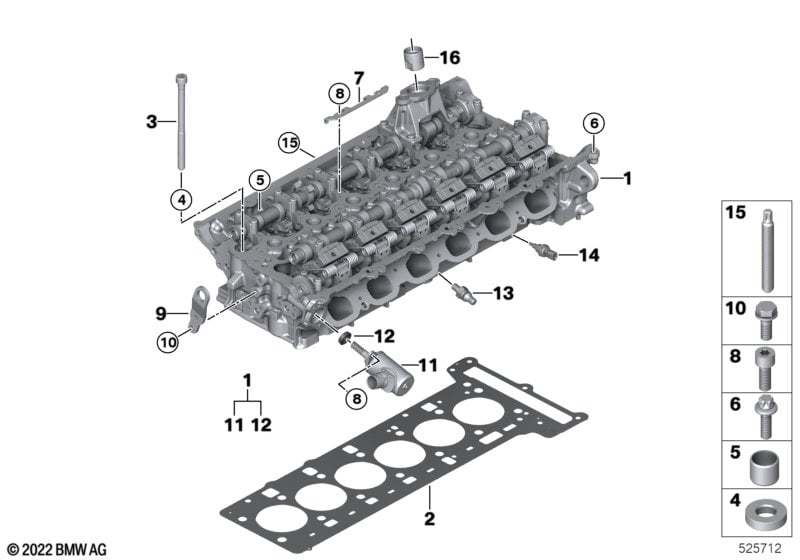

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head with valve train | 1 | 11121026004 | Shop at ECS Tuning | ||||||
| 02 | Cylinder head gasket | 0,9MM | 1 | 11121022840 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 1,2MM (+0,3) | 1 | 11121022847 | Shop at ECS Tuning | |||||
| 03 | Cylinder head bolt | M12X168 | 14 | 11128693883 | Shop at ECS Tuning | |||||
| 04 | Washer | M12 | 14 | 11128695451 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 06 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 07 | Prallblech Schaltschlepphebel | 3 | 11335A4CF68 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 8 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Loop | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Actuator | 1 | 11377643073 | Shop at ECS Tuning | ||||||
| 12 | Shaft seal | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 13 | Air-discharge fitting with O-ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 14 | Temperature sensor coolant / oil | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 15 | ASA-stud bolt | M7X58 | 4 | 11127638700 | Shop at ECS Tuning | |||||
| 15 | ASA-stud bolt | M7X47-10.9-PHR | 3 | 11127647711 | Shop at ECS Tuning | |||||
| 16 | Cam follower | 1 | 11328629250 | Shop at ECS Tuning |
