Cylinder head cover/Mounting parts for BMW 3 Series G20 Sedan LCI M340i (2023)

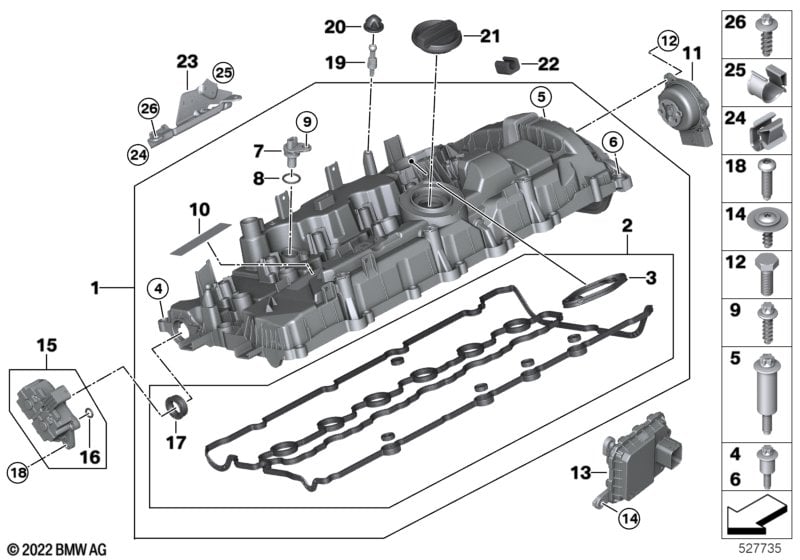

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127952876 | Shop at ECS Tuning | ||||||
| 02 | Gasket set, cylinder head cover | 1 | 11121023249 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11129847198 | Shop at ECS Tuning | ||||||
| 04 | ASA-Bolt | M6X29 | 18 | 08/2024 | 11128576309 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M6X29 | 18 | 11121033473 | Shop at ECS Tuning | |||||
| 05 | Collar screw | M6X59 | 1 | 11129847204 | Shop at ECS Tuning | |||||
| 06 | ASA-Bolt | M6X29 | 1 | 08/2024 | 11128576309 | Shop at ECS Tuning | ||||
| 06 | ASA-Bolt | M6X29 | 1 | 11121033473 | Shop at ECS Tuning | |||||
| 07 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 10 | Sign ignition coil/ fuel | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 11 | Servomotor VANOS | 2 | 11369452249 | Shop at ECS Tuning | ||||||
| For vehicles with CKD installation, India |
S9C2A=Yes |
|||||||||
| 12 | Screw | M6X16-8.8 ZNNIV | 8 | 07119906443 | Shop at ECS Tuning | |||||
| For vehicles with CKD installation, India |
S9C2A=No |
|||||||||
| 12 | Hex bolt | M6X16-8.8-ZNS3 | 8 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Control unit VANOS | 1 | 11369452250 | Shop at ECS Tuning | ||||||
| 14 | Fillister head screw | 3 | 07149321070 | Shop at ECS Tuning | ||||||
| 15 | Actuator switchable cam follower | 1 | 11339452680 | Shop at ECS Tuning | ||||||
| 16 | O-ring | 45X1,78 | 1 | 07119909926 | Shop at ECS Tuning | |||||
| 17 | Gasket | 1 | 11121023248 | Shop at ECS Tuning | ||||||
| 18 | Torx bolt | 3 | 07147207986 | Shop at ECS Tuning | ||||||
| 19 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 20 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 21 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 21 | Cap for oil filler | 1 | 11121028899 | Shop at ECS Tuning | ||||||
| 22 | Damper rubber | 1 | 13539469318 | Shop at ECS Tuning | ||||||
| 23 | Holder | 1 | 11785A189F9 | Shop at ECS Tuning | ||||||
| 24 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 25 | Cable holder | 3 | 07147590403 | Shop at ECS Tuning | ||||||
| 26 | ASA screw, self-threading | M6X18 | 2 | 11367609963 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI M340i Cylinder head cover/Mounting parts?
- This technical diagram illustrates the Cylinder head cover/Mounting parts within the Engine group for the 3 Series G20 Sedan LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11127952876).
- Which models use the hardware listed in this Cylinder head cover/Mounting parts?
- The hardware and components featured in the Cylinder head cover/Mounting parts are specific to the 3 Series G20 Sedan LCI M340i produced during 2023. These technical specifications ensure that parts like the Cylinder head cover (11127952876) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/Mounting parts assembly?
- Each item in the Cylinder head cover/Mounting parts corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI M340i, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11127952876 for the Engine section.
