Flywheel automatic for BMW 7 Series G70 750eX (2025)

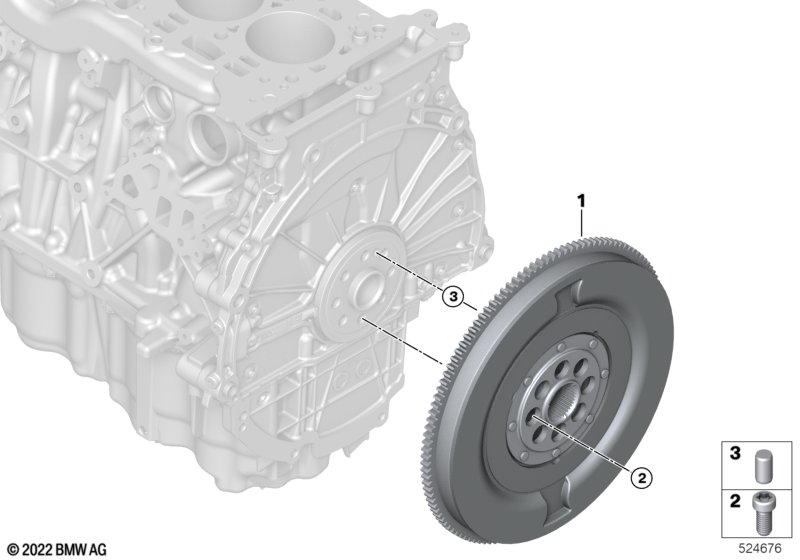

This Flywheel automatic technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Twin Mass Flywheel | 1 | 24005A26EA5 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Shaft seal | 1 | 24125A86138 | NoS | Shop at ECS Tuning | |||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 02 | ISA screw | M12X1.5X26 | 8 | 11228507622 | Shop at ECS Tuning | |||||
| 03 | Pin | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
