Lubrication system/Oil pump with drive for BMW 4 Series G23 Convertible LCI M440i (2025)

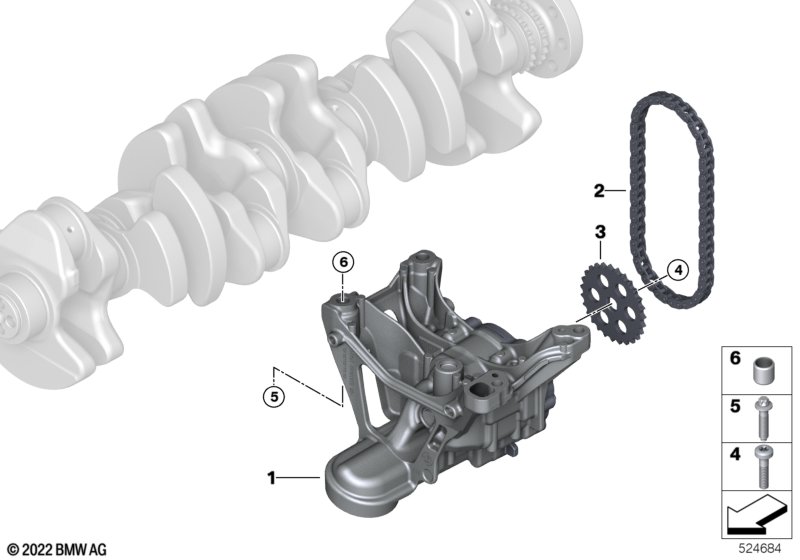

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Attention! Observe PuMA measure 65494813 . |
||||||||||
| 01 | Oil pump | 1 | 11415A67A59 | Shop at ECS Tuning | ||||||
| 02 | Chain | 1 | 11418482271 | Shop at ECS Tuning | ||||||
| 03 | Sprocket | 1 | 11418600425 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M8X35-PHR | 1 | 11417823426 | +core | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X35 | 4 | 11418612615 | Shop at ECS Tuning | |||||
| 06 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI M440i Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 4 Series G23 Convertible LCI M440i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11415A67A59).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 4 Series G23 Convertible LCI M440i produced during 2025. These technical specifications ensure that parts like the Oil pump (11415A67A59) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI M440i, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11415A67A59 for the Engine section.
