Engine cooling system exhaust turbo. for BMW 5 Series G60 Sedan 550eX (2025)

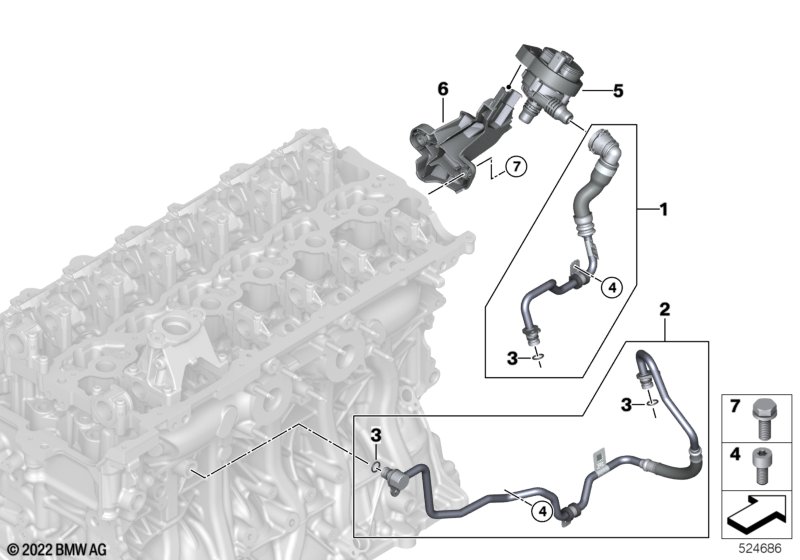

This Engine cooling system exhaust turbo. technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant return line | 1 | 11538489596 | Shop at ECS Tuning | ||||||
| 02 | Coolant feed line | 1 | 11538489595 | Shop at ECS Tuning | ||||||
| Important: Comply with repair instructions! |
||||||||||
| 03 | O-ring | 10.7X1.9 | 3 | 07148846822 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 10.7X1.9 | 2 | 07148846823 | Shop at ECS Tuning | |||||
| 03 | O-ring | 10.7X1.9 | 3 | 07148846823 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 10.7X1.9 | 2 | 07148846822 | Shop at ECS Tuning | |||||
| 04 | ISA screw | M6X12-8.8-ZNNIV | 5 | 07129905867 | Shop at ECS Tuning | |||||
| 05 | Auxiliary water pump | 1 | 11515A020E0 | Shop at ECS Tuning | ||||||
| 06 | Holder electric coolant pump | 1 | 03/2026 | 11519454099 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
