Cooling system-coolant pump for BMW 7 Series G70 740i (2025)

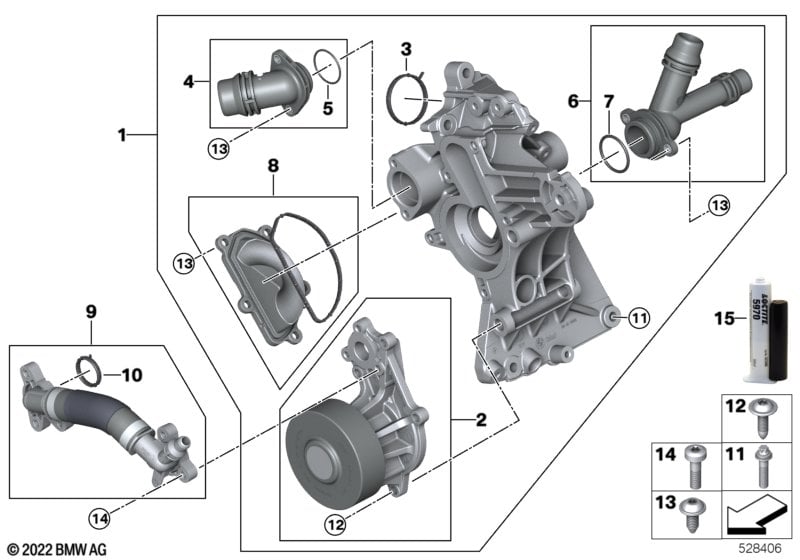

This Cooling system-coolant pump technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with support | 1 | 11519453667 | Shop at ECS Tuning | ||||||
| 02 | Water pump | 1 | 11515A55395 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 03 | Profile-gasket | 1 | 11515A55480 | Shop at ECS Tuning | ||||||
| 04 | Connector | NW26 | 1 | 11515A55478 | Shop at ECS Tuning | |||||
| 05 | O-ring | NW26 | 1 | 11515A76DD2 | Shop at ECS Tuning | |||||
| 06 | Connector | NW16+NW20 | 1 | 11515A553A0 | Shop at ECS Tuning | |||||
| 07 | O-ring | NW16+NW20 | 1 | 11515A76DE0 | Shop at ECS Tuning | |||||
| 08 | Lid water pump | 1 | 11515A55479 | Shop at ECS Tuning | ||||||
| 09 | Line from coolant pump-cylinder head | 1 | 11539453680 | Shop at ECS Tuning | ||||||
| 10 | Seal | 2 | 11538853707 | Shop at ECS Tuning | ||||||
| 11 | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | M6X20 | 5 | 11518482252 | Shop at ECS Tuning | |||||
| 13 | Screw | M6X16 | 9 | 07149885505 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | M6X20-8.8-ZNNIV | 6 | 07119907517 | Shop at ECS Tuning | |||||
| 15 | Loctite 5970 liquid sealant | 50ML | 6 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Cooling system-coolant pump?
- This technical diagram illustrates the Cooling system-coolant pump within the Engine group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Coolant pump with support (Part #11519453667).
- Which models use the hardware listed in this Cooling system-coolant pump?
- The hardware and components featured in the Cooling system-coolant pump are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Coolant pump with support (11519453667) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-coolant pump assembly?
- Each item in the Cooling system-coolant pump corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Coolant pump with support by locating its position on the schematic, which then links to the official BMW part number 11519453667 for the Engine section.
