Engine cooling heat management for BMW 3 Series G20 Sedan LCI M340i (2025)

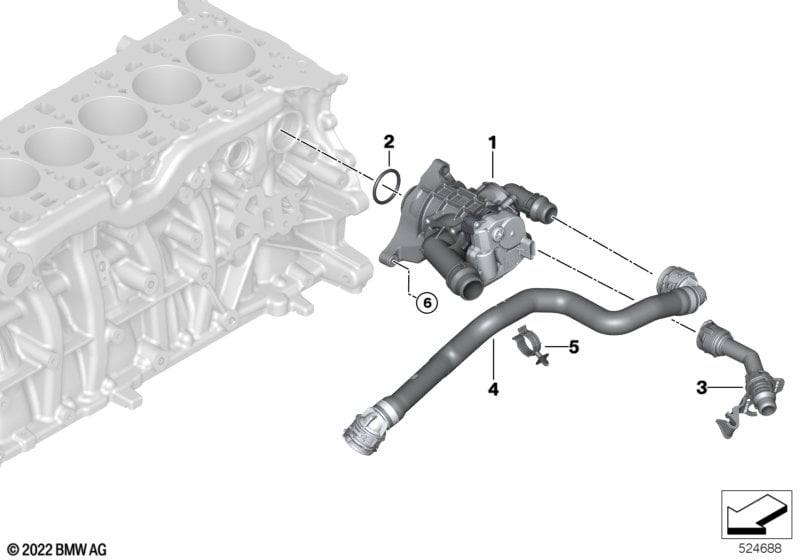

This Engine cooling heat management technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat management module | 1 | 11539468426 | Shop at ECS Tuning | ||||||
| 02 | Preformed seal | 1 | 11538835334 | Shop at ECS Tuning | ||||||
| 03 | Coolant feed line | 1 | 11538833781 | Shop at ECS Tuning | ||||||
| 04 | Coolant line heat management module | 1 | 11539453681 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | D=25-27MM | 1 | 12528635127 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI M340i Engine cooling heat management?
- This technical diagram illustrates the Engine cooling heat management within the Engine group for the 3 Series G20 Sedan LCI M340i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Heat management module (Part #11539468426).
- Which models use the hardware listed in this Engine cooling heat management?
- The hardware and components featured in the Engine cooling heat management are specific to the 3 Series G20 Sedan LCI M340i produced during 2025. These technical specifications ensure that parts like the Heat management module (11539468426) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine cooling heat management assembly?
- Each item in the Engine cooling heat management corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI M340i, you can identify the Heat management module by locating its position on the schematic, which then links to the official BMW part number 11539468426 for the Engine section.
