Oil supply exhaust turbocharger for BMW 7 Series G70 M760eX (2024)

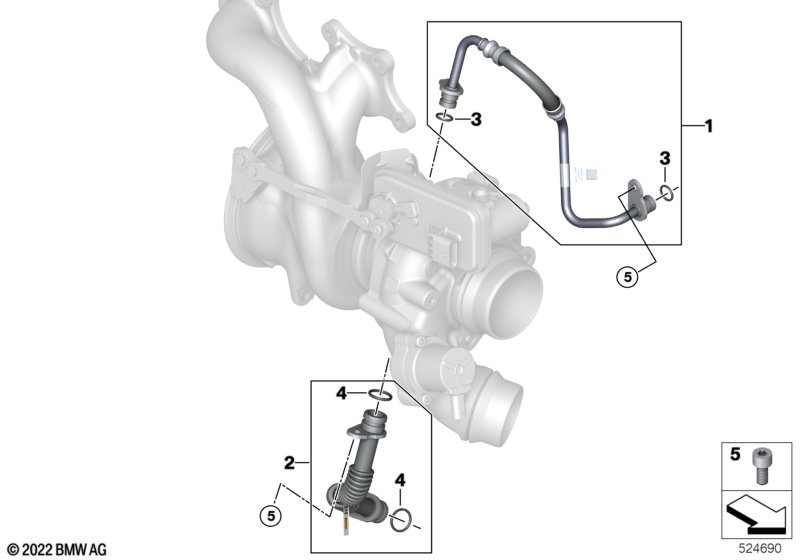

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil supply line | 1 | 11428489593 | Shop at ECS Tuning | ||||||
| 02 | Oil return line | 1 | 11428489594 | Shop at ECS Tuning | ||||||
| 03 | O-ring | 10.7X1.9 | 2 | 07148846820 | Shop at ECS Tuning | |||||
| 04 | O-ring | 15.5X2.25 | 2 | 07148846821 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning |
