Turbocharger for BMW 7 Series G70 740i (2025)

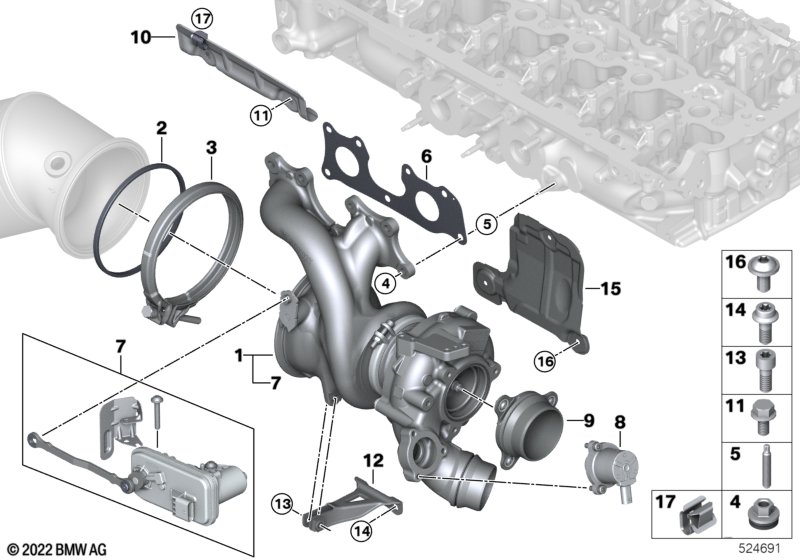

This Turbocharger technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Do not use turbocharger additive SN 2457276 for Korea vehicles! |
||||||||||
| 01 | Turbo charger | 1 | 11655A34710 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Oil return line | 1 | 11428489594 | Shop at ECS Tuning | ||||||
| 02 | Gasket exh.turbocharger/cat.converter | D=134MM | 1 | 18325A09490 | Shop at ECS Tuning | |||||
| 03 | Screw clamp | D=148MM | 1 | 18325A0BF72 | Shop at ECS Tuning | |||||
| 04 | Flange nut with spring washers | M7 | 7 | 11658670587 | Shop at ECS Tuning | |||||
| 05 | ASA-stud bolt | M7X47-10.9-PHR | 3 | 11127647711 | Shop at ECS Tuning | |||||
| 06 | Seal exhaust turbocharger | 1 | 11629454137 | Shop at ECS Tuning | ||||||
| 07 | Set Wastegate valve actuator | 1 | 11655A34712 | Shop at ECS Tuning | ||||||
| 08 | Blow-off valve | 1 | 11655A34711 | Shop at ECS Tuning | ||||||
| 09 | Compressor insert | 1 | 11655A71655 | Shop at ECS Tuning | ||||||
| 10 | Heat shield, turbocharger, upper | 1 | 11655B480B3 | NoS | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119904124 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Support | 1 | 11657643148 | Shop at ECS Tuning | ||||||
| 13 | ISA screw | M8X25 | 1 | 11657609303 | Shop at ECS Tuning | |||||
| 14 | ISA screw | M8X20-10.9 ZNS3 | 2 | 11657609961 | Shop at ECS Tuning | |||||
| 15 | Heat shield exhaust turbocharger | 1 | 11655B480B2 | NoS | Shop at ECS Tuning | |||||
| 16 | Torx bolt | ISA M6X12 | 3 | 07129907197 | Shop at ECS Tuning | |||||
| 17 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
