Oil Pan for BMW 3 Series G21 Touring LCI M340iX

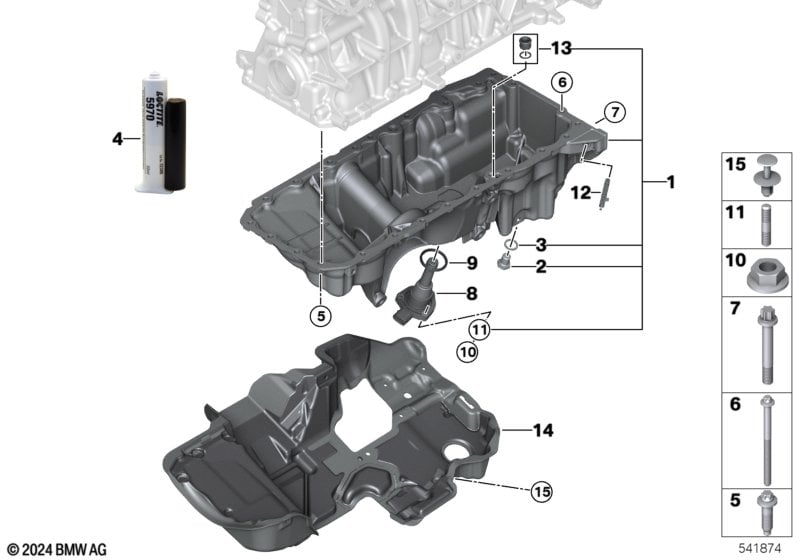

This Oil Pan technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340iX. It includes part names, part numbers and all associated mounting hardware.

Oil Pan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11138595464 Shop at ECS Tuning
02 Screw plug M12X16 1 11137535106 $3.68 Shop at ECS Tuning
03 Gasket ring A12X16-CU 1 07119963132 $0.38 Shop at ECS Tuning
04 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40 Shop at ECS Tuning
05 ASA-Bolt M8X30 22 11138592611 Shop at ECS Tuning
06 Torx bolt M8X110 2 11137800625 Shop at ECS Tuning
07 ASA-Bolt M8X50-8.8-ZNS3 3 23001222887 $1.13 Shop at ECS Tuning
08 Oil levelling sensor 1 12615A740A2 Shop at ECS Tuning
09 Gasket 1 12619454471 Shop at ECS Tuning
10 Hex nut with plate M6-8-ZNNIV SI 3 07119905544 $0.64 Shop at ECS Tuning
11 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42 Shop at ECS Tuning
12 Blind plug 1 11117536143 $0.67 Shop at ECS Tuning
13 non-return valve 1 11135A92EA9 Shop at ECS Tuning
14 Acoustic cover for oil pan 1 11149452662 Shop at ECS Tuning
15 Expanding rivet D = 8MM 4 51471911992 $0.40 Shop at ECS Tuning
