Belt Drive for BMW XM G09 XM (2025)

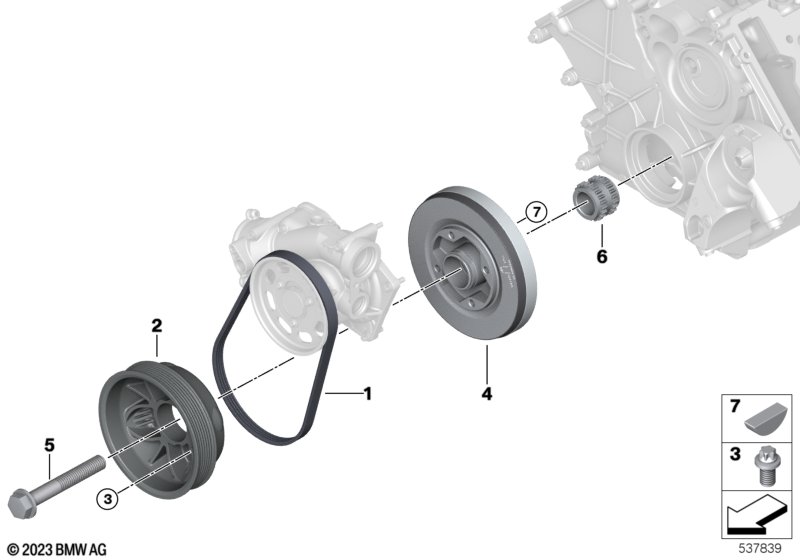

This Belt Drive technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed V-belt | 4PKX723-715 | 1 | 11285A26219 | Shop at ECS Tuning | |||||
| 02 | Pulley | 4PK | 1 | 11289454975 | Shop at ECS Tuning | |||||
| 03 | Star-socket screw | M10X16-8.8 | 4 | 07119908510 | Shop at ECS Tuning | |||||
| 04 | Vibration damper | 1 | 11237852253 | Shop at ECS Tuning | ||||||
| 05 | Collar screw | M18X1,5X122 | 1 | 11238648148 | Shop at ECS Tuning | |||||
| 06 | Sprocket | 1 | 11217571037 | $87.97 | Shop at ECS Tuning | |||||
| 07 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning |
