Flywheel for BMW XM G09 XM (2025)

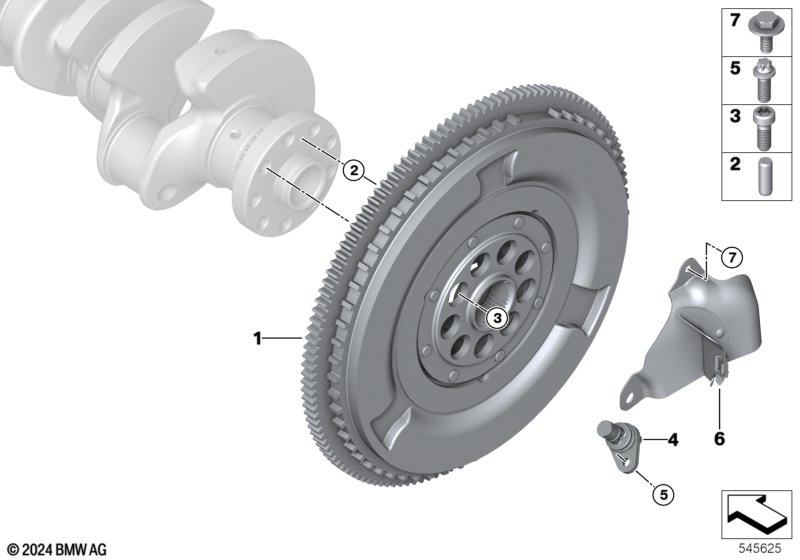

This Flywheel technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| When repairing the dual-mass flywheel 5A67382, the screw plug must be replaced with sealing ring 5A7A846 and the shaft seal 5A86138. |
||||||||||
| 01 | Twin Mass Flywheel | 1 | 24005A67382 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft seal | 1 | 24125A86138 | Shop at ECS Tuning | ||||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| When repairing the dual-mass flywheel 5A29114 the screw plug must be renewed along with sealing ring 5A7A846 and the shaft seal 5A86138. |
||||||||||
| 01 | Dual-mass flywheel | 1 | 24005A29114 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Shaft seal | 1 | 24125A86138 | NoS | Shop at ECS Tuning | |||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 02 | Pin | 5X14 | 1 | 11217500307 | $2.47 | Shop at ECS Tuning | ||||
| 03 | ISA screw | M12X1,5X29,15 | 9 | 11227805708 | Shop at ECS Tuning | |||||
| 04 | Crankshaft sensor | 1 | 13628623437 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning | |||||
