Exhaust turbocharger heat shield for BMW XM G09 XM (2025)

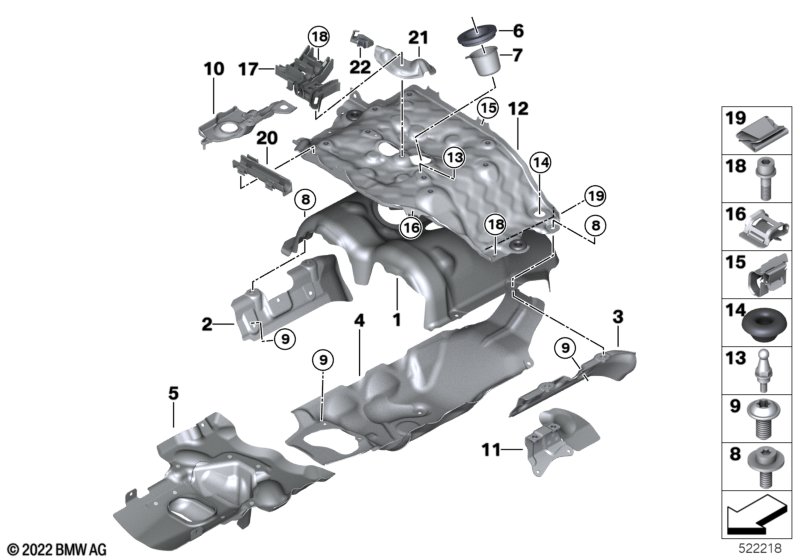

This Exhaust turbocharger heat shield technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat shield top | 1 | 11655B36ED2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Exhaust technology EU7 |
S1DGA=Yes |
|||||||||
| 01 | Heat shield top | 1 | 11655A5EA31 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Exhaust technology C6B RDE and Emissions standard EU6 rde II |
S1DDA=No S1DFA=No |
|||||||||
| 01 | Heat shield top | 1 | 11655B36ED3 | NoS | Shop at ECS Tuning | |||||
| 02 | Heat shield right | 1 | 11655B36ED8 | NoS | Shop at ECS Tuning | |||||
| 03 | Heat shield left | 1 | 11655B36ED9 | NoS | Shop at ECS Tuning | |||||
| 04 | Heat shield bottom | 1 | 11655B36ED6 | NoS | Shop at ECS Tuning | |||||
| 05 | Heat shield | 1 | 11655B36ED7 | NoS | Shop at ECS Tuning | |||||
| 06 | Wire clamp | 2 | 11657843160 | Shop at ECS Tuning | ||||||
| 07 | Sleeve | ZYL. 1-4 | 2 | 11657585806 | $7.89 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X16-U2-8.8-ZN | 8 | 07129906916 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M6X12-A2-80 | 14 | 06327651203 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Drainage tray | 1 | 11155A50648 | Shop at ECS Tuning | ||||||
| 11 | Holder for bridge of V-space | ZYL. 5-8 | 1 | 11655B4A541 | NoS | Shop at ECS Tuning | ||||
| 12 | Retaining bridge | 1 | 11155A54EB9 | NoS | Shop at ECS Tuning | |||||
| 13 | Ball pin | 2 | 13717590625 | $1.71 | Shop at ECS Tuning | |||||
| 14 | Grommet | 3 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 15 | Cable clamp | 3 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 16 | Cable holder | 3 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
| 17 | Holder | 2 | 11787856764 | Shop at ECS Tuning | ||||||
| 18 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 5 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Clamp | 1 | 11657844745 | Shop at ECS Tuning | ||||||
| 20 | Holder | 1 | 03/2023 | 12525A4FE29 | NoS | Shop at ECS Tuning | ||||
| 21 | Cable guide | 1 | 11785A2F4F9 | Shop at ECS Tuning | ||||||
| 22 | Lid | 1 | 03/2023 | 11155A587F6 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Exhaust turbocharger heat shield?
- This technical diagram illustrates the Exhaust turbocharger heat shield within the Engine group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Heat shield top (Part #11655B36ED2).
- Which models use the hardware listed in this Exhaust turbocharger heat shield?
- The hardware and components featured in the Exhaust turbocharger heat shield are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Heat shield top (11655B36ED2) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust turbocharger heat shield assembly?
- Each item in the Exhaust turbocharger heat shield corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Heat shield top by locating its position on the schematic, which then links to the official BMW part number 11655B36ED2 for the Engine section.
