Valve timing gear, camshaft, outlet for BMW 7 Series G70 M760eX (2025)

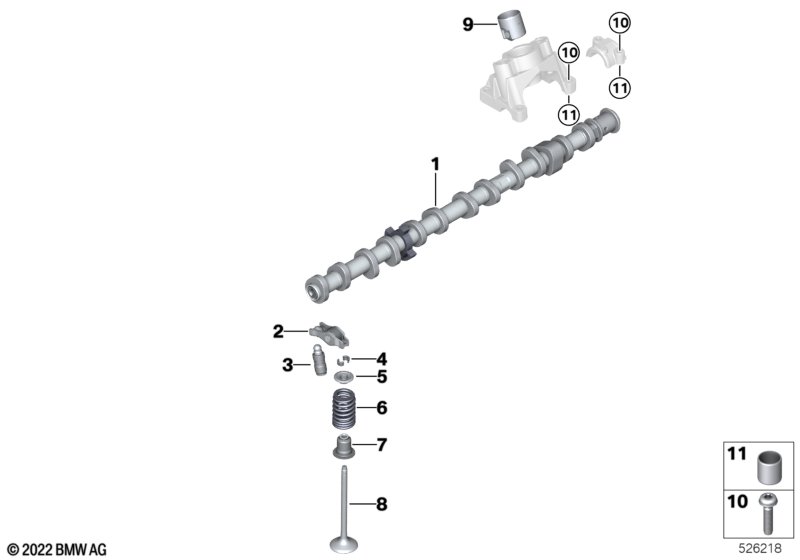

This Valve timing gear, camshaft, outlet technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft exhaust | 1 | 11318645701 | Shop at ECS Tuning | ||||||
| 02 | Roller drag lever | 12 | 11337640538 | Shop at ECS Tuning | ||||||
| 03 | Alignment element | 12 | 11338679835 | Shop at ECS Tuning | ||||||
| 04 | Valve collet | D=6 | 24 | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| 05 | Upper spring plate | 12 | 11347614134 | Shop at ECS Tuning | ||||||
| 06 | Valve spring | 12 | 11348603911 | Shop at ECS Tuning | ||||||
| 07 | Repair kit valve seal ring | 1 | 11340035853 | $82.00 | Shop at ECS Tuning | |||||
| 08 | Exhaust valve | 12 | 11345A36AF9 | Shop at ECS Tuning | ||||||
| 09 | Cam follower | 1 | 11328629250 | Shop at ECS Tuning | ||||||
| Attention! Observe repair manual.Changed tightening process. |
||||||||||
| 10 | Countersunk screw | M6X35-10.9 | 14 | 07119909683 | Shop at ECS Tuning | |||||
| 11 | Dowel | D=7,5MM | 6 | 11127606504 | Shop at ECS Tuning | |||||
