Short block for BMW 7 Series G70 750eX

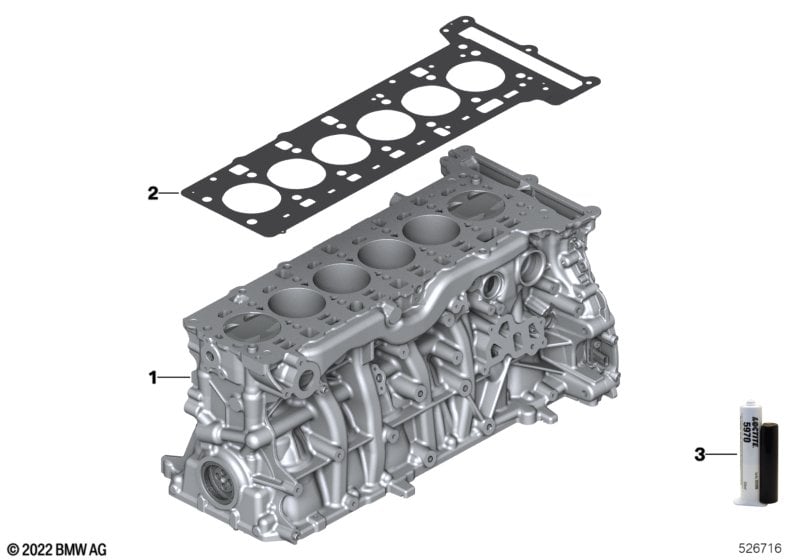

This Short block technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note Repair Manual | |||||||||
| Short block consists of: Crankcase Crankshaft with bearing shells Connecting rod and piston Oil deflector and oil spray nozzles To AI-07 of KGH-SNR 9468996, the shutoff valve with SNR 5A58876 is also required. From AI-08 of KGH-SNR 9468996, the sealing plug 8518468 is preassembled. |
||||||||||
| 01 | Short block | 1 | 11111025309 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| -- | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| -- | Shaft seal | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 0,9MM | 1 | 11121022840 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 1,2MM (+0,3) | 1 | 11121022847 | Shop at ECS Tuning | |||||
| 03 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
