Engine Block Mounting Parts for BMW 5 Series G60 Sedan 520i (2024)

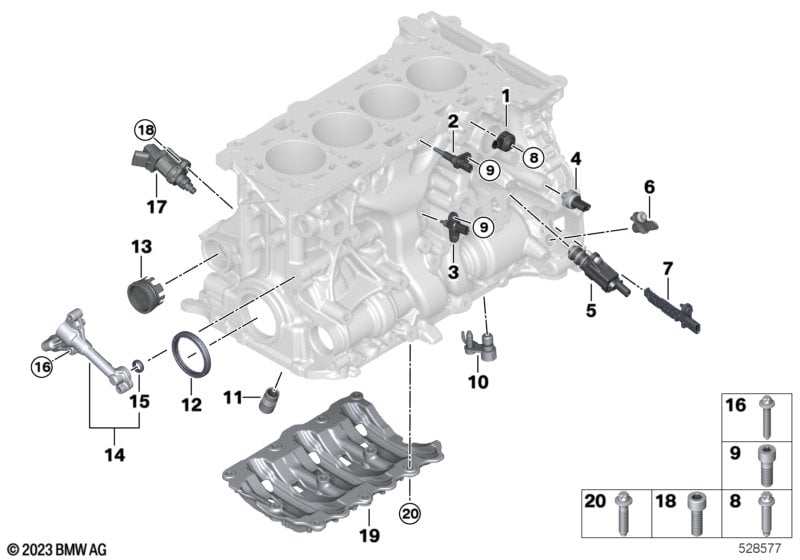

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ping Sensor | 2 | 13629845632 | Shop at ECS Tuning | ||||||
| 02 | Component temperature sensor | 1 | 13628661436 | Shop at ECS Tuning | ||||||
| 03 | Oil temperature sensor | 1 | 12619452254 | Shop at ECS Tuning | ||||||
| 04 | Oil pressure sensor | 1 | 12618482216 | Shop at ECS Tuning | ||||||
| 05 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 06 | Cover lid | 1 | 11668471789 | Shop at ECS Tuning | ||||||
| 07 | Crankshaft sensor | 1 | 13628644376 | Shop at ECS Tuning | ||||||
| 08 | Star-socket screw | BM8X30-8.8 ZNS3 | 2 | 13629907870 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | M6X18-10.9-ZNS3 | 4 | 07119906651 | Shop at ECS Tuning | |||||
| 10 | Oil Spraying Nozzle | 4 | 11427634186 | Shop at ECS Tuning | ||||||
| 11 | non-return valve | 1 | 11128591869 | Shop at ECS Tuning | ||||||
| 12 | Shaft seal | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 13 | End cover with gasket | 2 | 11117797932 | Shop at ECS Tuning | ||||||
| 14 | Housing, shutoff valve | 1 | 11111019073 | Shop at ECS Tuning | ||||||
| 15 | Profile seal | 1 | 11111020328 | Shop at ECS Tuning | ||||||
| 16 | ASA-Bolt | M6X31 | 3 | 11147797493 | Shop at ECS Tuning | |||||
| 17 | Oil shutoff valve | 1 | 11425A07190 | Shop at ECS Tuning | ||||||
| 18 | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 19 | Oil deflector | 1 | 11135A0B0F8 | NoS | Shop at ECS Tuning | |||||
| 20 | ASA-Bolt | M8X35 | 10 | 11418612615 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
