Belt Drive-Vibration Damper for BMW 3 Series G20 Sedan LCI 320i (2025)

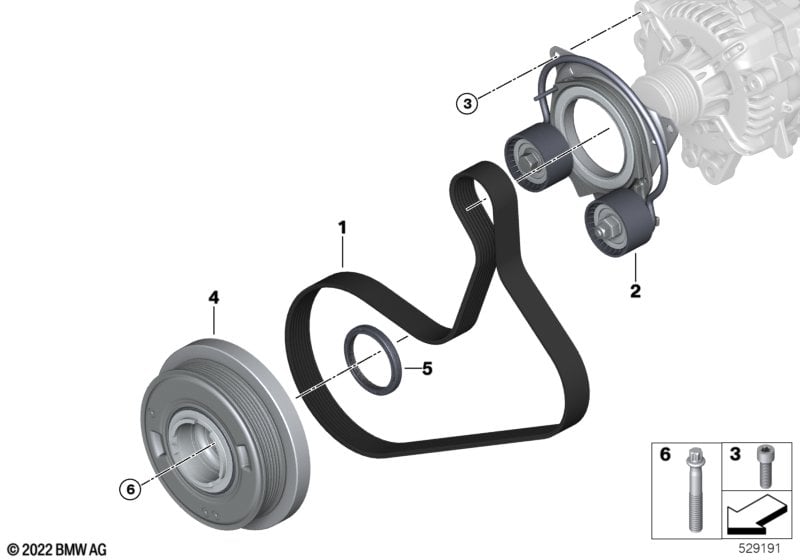

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Belt Drive-Vibration Damper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ribbed V-belt 1 11285A6F413 Shop at ECS Tuning
02 Belt tensioner 1 11285A6F412 Shop at ECS Tuning
03 ISA screw M8X25-10.9-ZNS3 3 07129904477 $2.00 Shop at ECS Tuning
04 Vibration damper 1 11235A84613 Shop at ECS Tuning
05 Shaft seal 55X68X8 1 11118664905 Shop at ECS Tuning
06 ASA-Bolt M10X65 4 11238585220 Shop at ECS Tuning
