Valve timing gear, camshaft, outlet for BMW 5 Series G60 Sedan 520i (2025)

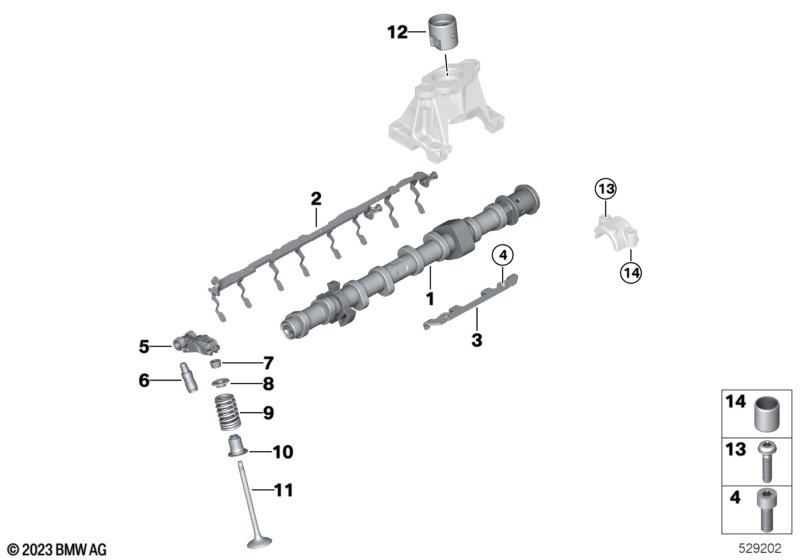

This Valve timing gear, camshaft, outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust camshaft | 1 | 11318645698 | NoS | Shop at ECS Tuning | |||||
| 02 | Push bar exhaust camshaft | 1 | 11335A369F2 | Shop at ECS Tuning | ||||||
| 03 | Prallblech Schaltschlepphebel | 2 | 11335A4CF68 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Switchable cam follower | 8 | 11339452677 | Shop at ECS Tuning | ||||||
| 06 | Alignment element | 16 | 11338679835 | Shop at ECS Tuning | ||||||
| 07 | Valve collet | D=6 | 16 | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| 08 | Upper spring plate | 8 | 11347614134 | Shop at ECS Tuning | ||||||
| 09 | Valve spring | 8 | 11348603911 | Shop at ECS Tuning | ||||||
| 10 | Repair kit valve seal ring | 1 | 11340038720 | Shop at ECS Tuning | ||||||
| 11 | Exhaust valve | 8 | 11345A36AF9 | Shop at ECS Tuning | ||||||
| 12 | Cam follower | 1 | 11328629250 | Shop at ECS Tuning | ||||||
| Attention! Observe repair manual.Changed tightening process. |
||||||||||
| 13 | Countersunk screw | M6X35-10.9 | 10 | 07119909683 | Shop at ECS Tuning | |||||
| 14 | Dowel | D=7,5MM | 4 | 11127606504 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
