Lubricat.syst.-oil filter,heat exchanger for BMW 5 Series G60 Sedan 530i (2024)

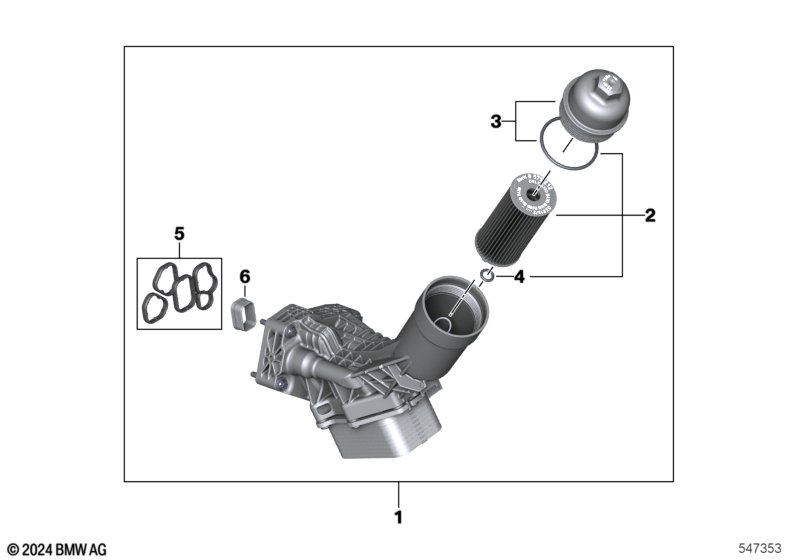

This Lubricat.syst.-oil filter,heat exchanger technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11428580414 | Shop at ECS Tuning | ||||||
| 02 | Set oil-filter element | 1 | 11428575211 | Shop at ECS Tuning | ||||||
| 03 | Oil filter cover | 1 | 11429886568 | Shop at ECS Tuning | ||||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket set | 1 | 11429886567 | Shop at ECS Tuning | ||||||
| 06 | Plug | 1 | 11428490951 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530i Lubricat.syst.-oil filter,heat exchanger?
- This technical diagram illustrates the Lubricat.syst.-oil filter,heat exchanger within the Engine group for the 5 Series G60 Sedan 530i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter (Part #11428580414).
- Which models use the hardware listed in this Lubricat.syst.-oil filter,heat exchanger?
- The hardware and components featured in the Lubricat.syst.-oil filter,heat exchanger are specific to the 5 Series G60 Sedan 530i produced during 2024. These technical specifications ensure that parts like the Oil filter (11428580414) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubricat.syst.-oil filter,heat exchanger assembly?
- Each item in the Lubricat.syst.-oil filter,heat exchanger corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530i, you can identify the Oil filter by locating its position on the schematic, which then links to the official BMW part number 11428580414 for the Engine section.
