Intake manifold system for BMW 5 Series G60 Sedan 530iX (2025)

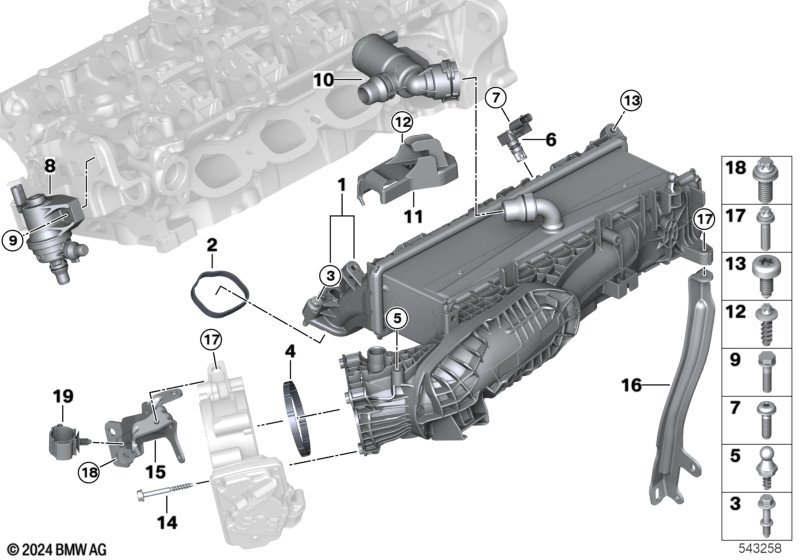

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold system | 1 | 11617952860 | NoS | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 02 | Seal for intake system | 4 | 11615A40C05 | Shop at ECS Tuning | ||||||
| 03 | Collar screw | M6 | 5 | 11619486363 | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 13548632344 | Shop at ECS Tuning | ||||||
| 05 | Ball pin | 1 | 11127593207 | Shop at ECS Tuning | ||||||
| 06 | Pressure sensor | 1 | 13628489540 | Shop at ECS Tuning | ||||||
| 07 | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 08 | Shut-off valve | 1 | 11519896405 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M6X25-ZNNIV SI | 1 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Shutoff valve | 1 | 11515A13AA8 | NoS | Shop at ECS Tuning | |||||
| 11 | Shut-off valve bracket | 1 | 08/2025 | 11518740695 | NoS | Shop at ECS Tuning | ||||
| 12 | ASA screw, self-threading | M6X18 | 1 | 11367609963 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw | 2 | 07149149705 | $0.27 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | 6,0X50 | 3 | 13547561349 | Shop at ECS Tuning | |||||
| 15 | Support, intake system | 1 | 11617952862 | NoS | Shop at ECS Tuning | |||||
| 16 | Support, intake system | 1 | 11617952863 | Shop at ECS Tuning | ||||||
| 17 | Star-socket screw | M6X25 | 2 | 07119908752 | Shop at ECS Tuning | |||||
| 18 | Star-socket screw | BM6X16-U1-8.8- | 3 | 07119908518 | Shop at ECS Tuning | |||||
| 19 | Hose clamp | D=23MM | 1 | 17127619358 | Shop at ECS Tuning | |||||
