Oil supply exhaust turbocharger for BMW 4 Series G22 Coupé LCI 420i (2025)

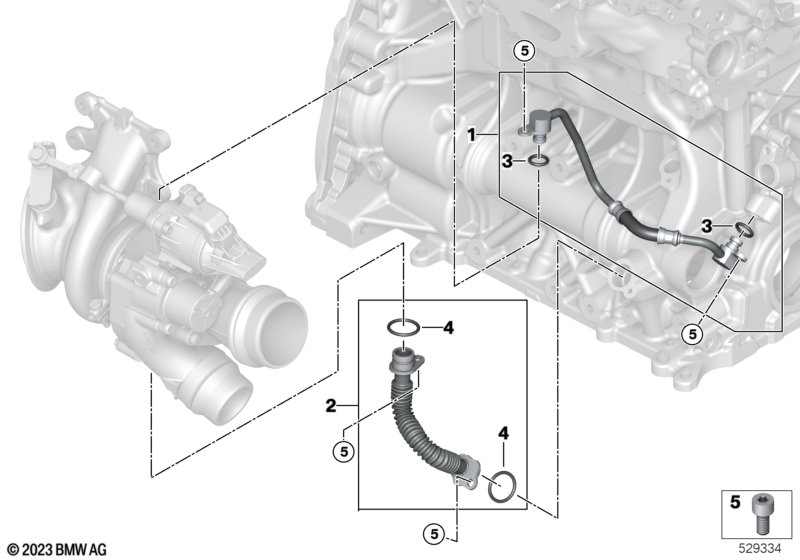

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Oil supply exhaust turbocharger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil feed line exhaust turbocharger 1 11425A01EF2 Shop at ECS Tuning
02 Oil return line 1 11428489608 Shop at ECS Tuning
03 O-ring 9,0X2,0MM 2 07148846148 Shop at ECS Tuning
04 O-ring 16X2MM 2 11428604872 Shop at ECS Tuning
05 ISA screw M6X12-8.8-ZNNIV 4 07129905867 Shop at ECS Tuning
