Exhaust turbocharger heat shield for BMW 5 Series G60 Sedan 520d (2025)

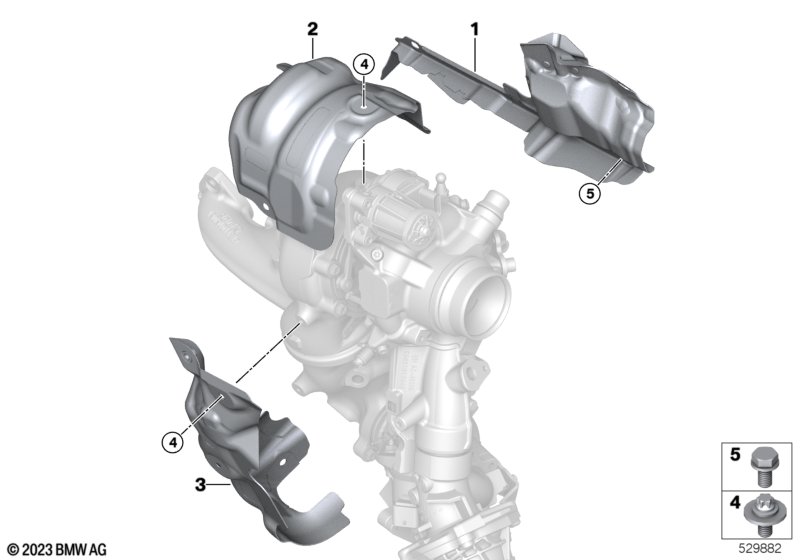

This Exhaust turbocharger heat shield technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Exhaust turbocharger heat shield
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heat shield 1 11659887180 NoS Shop at ECS Tuning
02 Heat shield 1 11659887181 NoS Shop at ECS Tuning
03 Heat shield 1 11629887182 NoS Shop at ECS Tuning
04 Star-socket screw M6X12 8.8 5 07119908672 Shop at ECS Tuning
05 Hex bolt with washer M8X16 3 07119905528 $0.62 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)

See Also

SHORT ENGINE SHORT ENGINE
ENGINE BLOCK MOUNTING PARTS ENGINE BLOCK MOUNTING PARTS
TIMING CASE COVER TIMING CASE COVER
OIL PAN/OIL LEVEL INDICATOR OIL PAN/OIL LEVEL INDICATOR
CYLINDER HEAD/MOUNTING PARTS CYLINDER HEAD/MOUNTING PARTS
CYLINDER HEAD/INTERMEDIATE HOUSING CYLINDER HEAD/INTERMEDIATE HOUSING
CYLINDER HEAD COVER CYLINDER HEAD COVER
CRANKCASE-VENTILATION CRANKCASE-VENTILATION
BELT DRIVE BELT DRIVE
CRANKSHAFT WITH BEARING SHELLS CRANKSHAFT WITH BEARING SHELLS
CRANKSHAFT ASBLY - CONNECTING ROD/PISTON CRANKSHAFT ASBLY - CONNECTING ROD/PISTON
CRANKSHAFT DRIVE MASS COMPENSATOR CRANKSHAFT DRIVE MASS COMPENSATOR
FLYWHEEL FLYWHEEL
TIMING AND VALVE TRAIN-CAMSHAFT TIMING AND VALVE TRAIN-CAMSHAFT
TIMING - TIMING CHAIN LOWER P TIMING - TIMING CHAIN LOWER P
TIMING GEAR TIMING CHAIN TOP TIMING GEAR TIMING CHAIN TOP
LUBRICATION SYSTEM/OIL PUMP WITH DRIVE LUBRICATION SYSTEM/OIL PUMP WITH DRIVE
LUBRICATION SYSTEM-OIL FILTER LUBRICATION SYSTEM-OIL FILTER
COOLING SYSTEM-COOLANT PUMP COOLING SYSTEM-COOLANT PUMP
COOLING SYSTEM-THERMOSTAT HOUSING COOLING SYSTEM-THERMOSTAT HOUSING

Frequently Asked Questions

What assembly is shown in the BMW 5 Series G60 Sedan 520d Exhaust turbocharger heat shield?
This technical diagram illustrates the Exhaust turbocharger heat shield within the Engine group for the 5 Series G60 Sedan 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Heat shield (Part #11659887180).
Which models use the hardware listed in this Exhaust turbocharger heat shield?
The hardware and components featured in the Exhaust turbocharger heat shield are specific to the 5 Series G60 Sedan 520d produced during 2025. These technical specifications ensure that parts like the Heat shield (11659887180) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Exhaust turbocharger heat shield assembly?
Each item in the Exhaust turbocharger heat shield corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520d, you can identify the Heat shield by locating its position on the schematic, which then links to the official BMW part number 11659887180 for the Engine section.
