Cooling system-coolant pump for BMW 5 Series G60 Sedan 530e (2025)

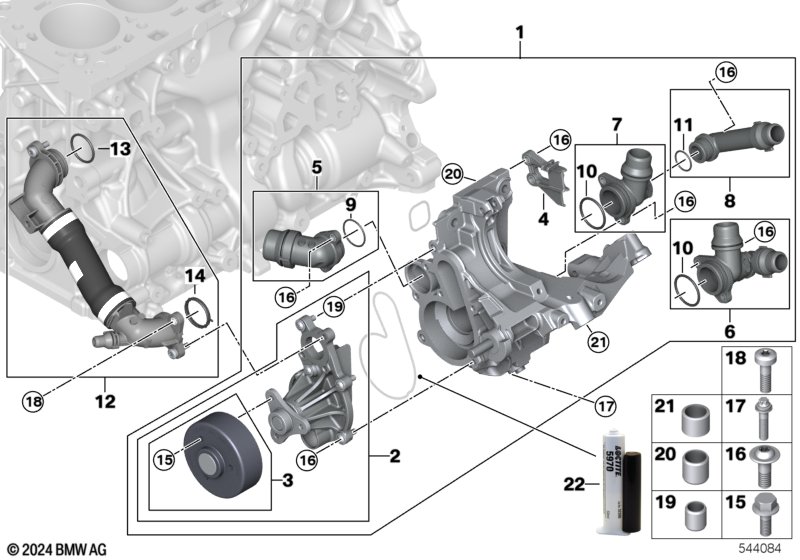

This Cooling system-coolant pump technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with support | 1 | 11518650987 | Shop at ECS Tuning | ||||||
| 02 | Water pump | 1 | 11515A12C80 | Shop at ECS Tuning | ||||||
| 03 | Belt pulley, coolant pump | 1 | 11518663674 | Shop at ECS Tuning | ||||||
| 04 | Holder | 1 | 11518742166 | Shop at ECS Tuning | ||||||
| 05 | Neck | NW26 | 1 | 11515A88E70 | Shop at ECS Tuning | |||||
| 06 | Connector | NW16+NW20 | 1 | 11515B57B35 | NoS | Shop at ECS Tuning | ||||
| 07 | Part not available separately | 1 | 06/2024 | 00000000000 | Shop at ECS Tuning | |||||
| 08 | Part not available separately | 1 | 06/2024 | 00000000000 | Shop at ECS Tuning | |||||
| 09 | O-ring | NW26 | 1 | 11515A88E71 | Shop at ECS Tuning | |||||
| 10 | O-ring | NW20 | 1 | 11518482257 | Shop at ECS Tuning | |||||
| 11 | Part not available separately | 1 | 06/2024 | 00000000000 | Shop at ECS Tuning | |||||
| 12 | Line for coolant pump | 1 | 11539847751 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 28,7X2,5 | 1 | 11538674931 | Shop at ECS Tuning | |||||
| 14 | Gasket | 29,8X4,6X2,2 | 1 | 11538678045 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X16-8.8-ZNS3 | 3 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Thread lock, medium-strength | 10ML | 1 | 83192210339 | Shop at ECS Tuning | |||||
| 16 | Countersunk screw | M6X20 | 12 | 11518482252 | Shop at ECS Tuning | |||||
| 17 | Star-socket screw | M8X35 | 6 | 07119907865 | Shop at ECS Tuning | |||||
| 18 | Countersunk screw | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning | |||||
| 19 | Not currently available as single part | 2 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 20 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 21 | Dowel | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 22 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
