Flywheel / Twin Mass Flywheel for BMW 3 Series E46 318i (1998)
This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Twin Mass Flywheel | 1 | 21207508409 | $859.32 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||

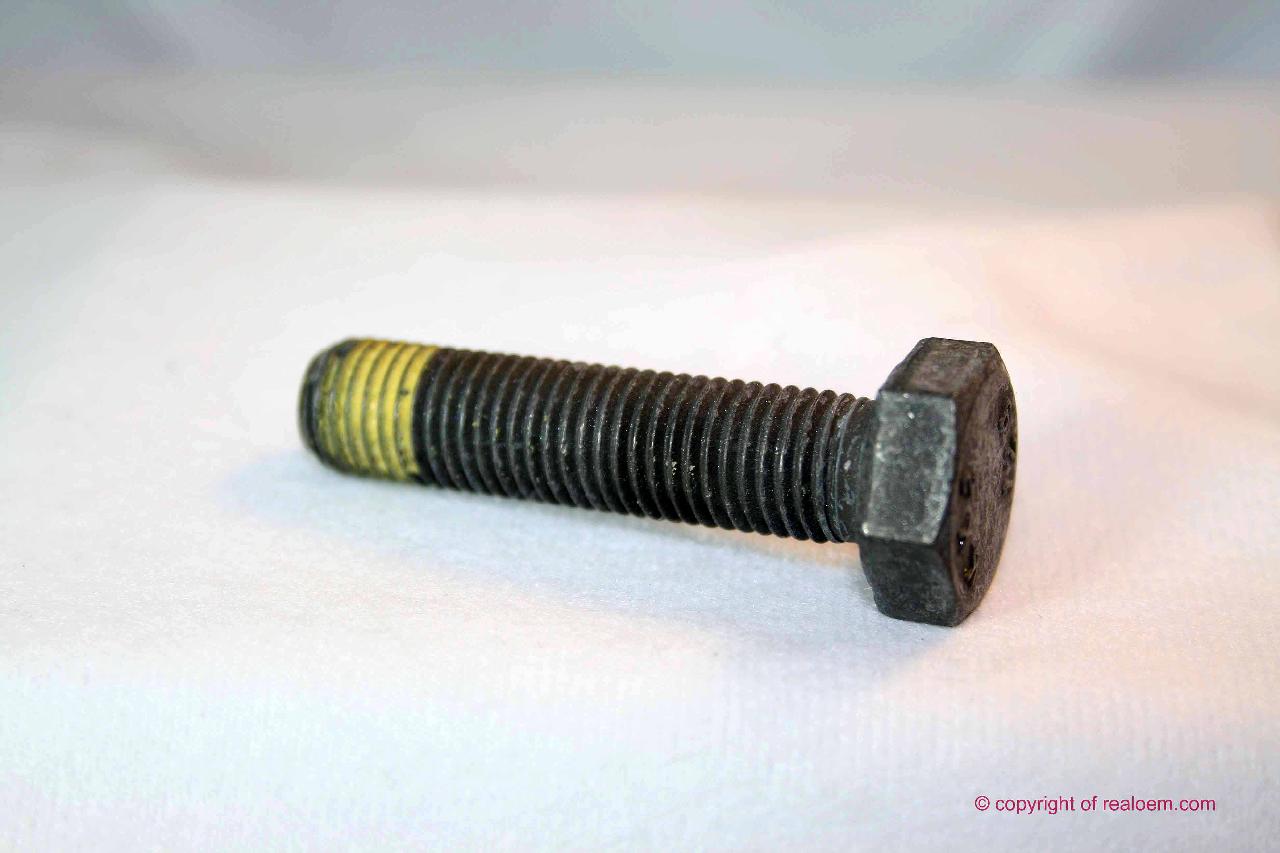

| -- | Hex bolt | M12X1,5X50 | 8 | 11222243051 | $2.87 | Shop at ECS Tuning | ||||
| not suitable for Twin Mass Flywheel |
||||||||||
| 02 | Dowel pin | 10X23 | 3 | 11221709069 | $5.83 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 15X32X10 | 1 | 11211720310 | $22.42 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Twin Mass Flywheel (Part #21207508409).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Twin Mass Flywheel (21207508409) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Twin Mass Flywheel by locating its position on the schematic, which then links to the official BMW part number 21207508409 for the Engine section.
