Crankshaft Connecting Rod for BMW 3 Series E46 318i (1998)

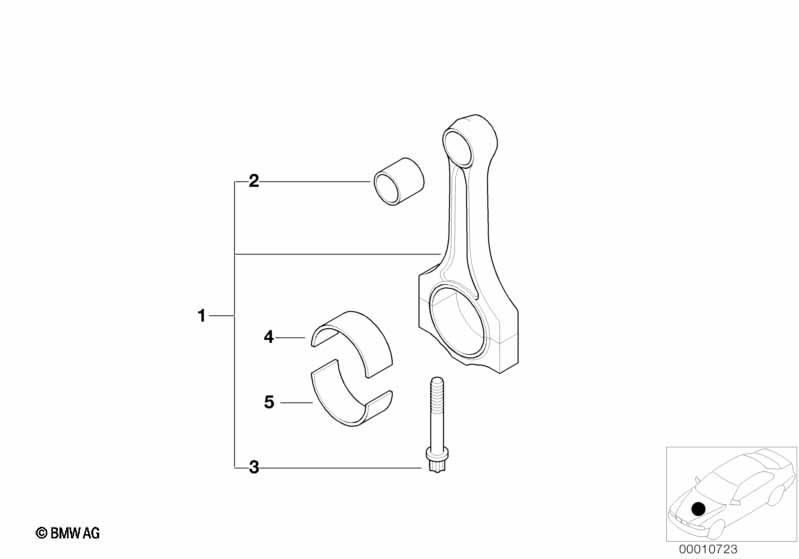

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set connecting rod | 1 | 11241437617 | $198.87 | Shop at ECS Tuning | |||||
| 02 | Connecting rod bush | 4 | 11241278209 | $7.06 | Shop at ECS Tuning | |||||
| 03 | Connecting rod bolt | L=44MM | 8 | 11241739729 | Shop at ECS Tuning | |||||
| 04 | Bearing shell, blue | 45,00MM(0) | 4 | 11241284850 | $15.98 | Shop at ECS Tuning | ||||
| 04 | Bearing shell, blue | 44,75MM(+0,25) | 4 | 11241284852 | $21.31 | Shop at ECS Tuning | ||||
| 04 | Bearing shell, blue | 44,50MM(+0,50) | 4 | 11241284854 | $21.31 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, red | 45,00MM(0) | 4 | 11241284849 | $16.49 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, red | 44,75MM(+0,25) | 4 | 11241284851 | $13.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Bearing shell, red | 44,50MM(+0,50) | 4 | 11241284853 | $13.27 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
